z21 start digital set: Diesel locomotive class 221 with a goods train of the Deutsche Bundesbahn.

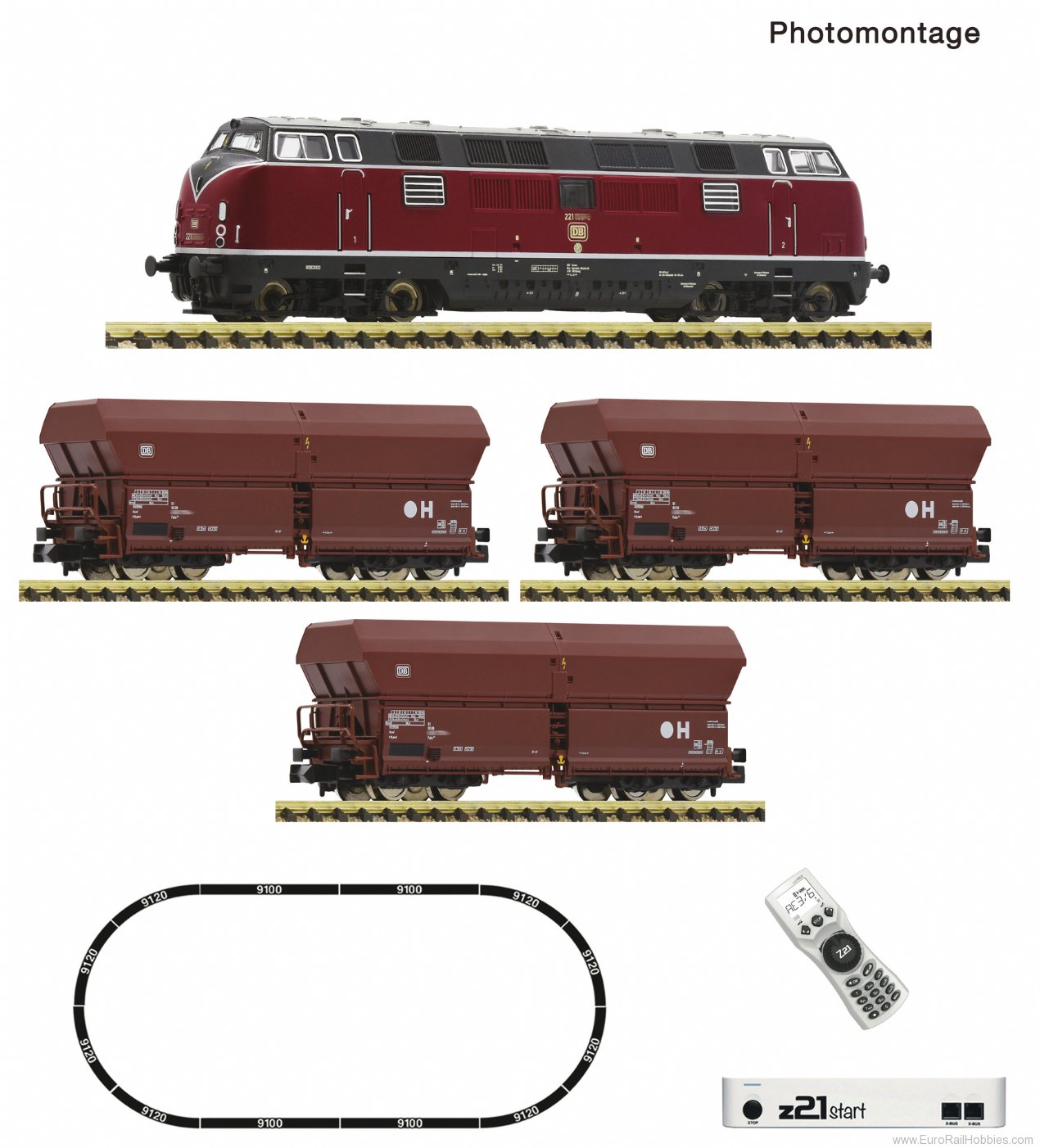

The set contains:
1 digitally controlled class 221 diesel locomotive
3 self-unloading hopper wagons
1 z21 start
1 Z21 multiMAUS
1 plug-in power supply unit
Ballast bed track for a track oval with radius R1 (4 x 9100, 8 x 9120), electrical connection material.
Size of track layout: 85 cm x 40 cm.
z21 is a modular design digital system:
* Begin with z21 start-Zentrale and Z21 multiMAUS.
* Upgrading with a WiFi router and activation code, item number 10814, and thus the use of a smartphone, Tablet-PC, Z21 WLANMAUS and computer (Software-protected model train control) is possible.
* If you already have your own WiFi router and you know how to work with WiFi networks, then the activation code 10818 is sufficient for the aforementioned upgrade.
General data
| Coupling |
NEM shaft 355 with close coupling mechanism |
| Minimum radius |
192 mm |
| Flywheel |
yes |
| Traction tyres |
2 |
| Number of driven axles |
4 |
| Scale |
N |
| Epoch |
IV |
| Railway Company |
DB |
Electrical
| Head light |
Both sides of the vehicle are equipped with direction dependent triple headlights. |
| LED head light |
yes |
| Control |
DC Digital |
| Interface |
Electrical interface for traction units according to NEM 651 standards with plug-in fixture |
| Digital decoder |
NEM 651 |
Measurements
| Length over buffer |
349 mm |
