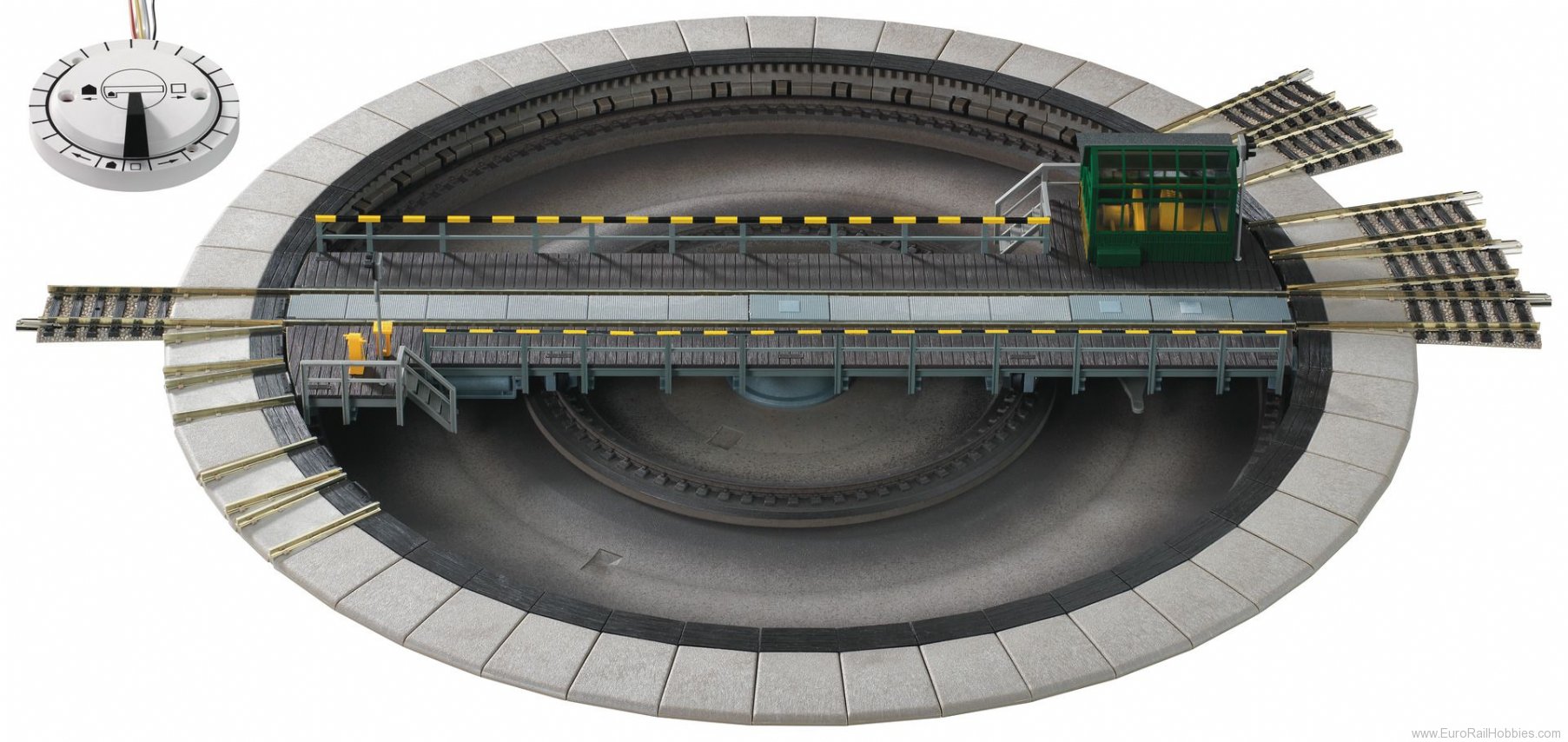

Electrically operated turntable, with electrically switchable track exits using the turntable control switch 6910. Length of the turning bridge: 310 mm.
The turntable is prototypically mounted in a recess and fitted with accurate details. As delivered, there are 6 exit tracks and 4 over-run ends. The exit tracks can be unclipped and repositioned as desired, or extended using the turntable extension set 6153 right up to the complete 48 exits.
The "thinking" turntable: using the switch 6910, will determine the rotation direction in order to access the desired exit. The power feed is activated within the turning bridge. The power to the track exit with which the turntable is lined up, either left or right, can be fed with power using the switch 6910. All other track exits remain isolated (even those opposite each other).A maximum of 48 track exits can be controlled and electrically operated without the need for any additional wiring.
Note: Control your turntables easily – with TURN-CONTROL, the electronic
turntable control device (item No. 6915).
