Please Note: Our KM1 Modellbau images may only show a representative model of a class/series. Please check the product description for actual color, era, details and other options for each stock number. Please contact us before ordering if you have any questions.

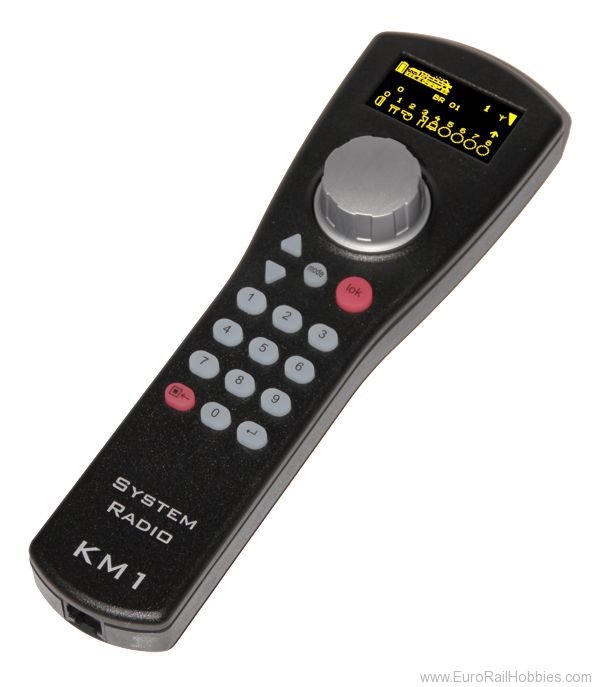

The KM1 System Radio is supplied as a set with a wireless hand-held controller and a base station. A system radio wireless handheld has all addresses and control information displayed on the screen. The speed is controlled via the proven even in our SC7 knob with detent torque. Pushing the speed knob changes the direction of the selected model. 20 locomotive special functions can be switched directly via the numeric keypad, all other than the locomotive special function menu. The radio system can always be connected without loss of the current running state of the locomotives from the radio operation to the LocoNet, or separated again. So you can hand control not only wireless but also use wired with all the comfort features! Once you have the system on radio LocoNet cable is connected, also the battery is automatically recharged. The set is suitable for operation at all centers with LocoNet interface and thus not only for our System Control 7. The range is in the open field up to 100m to the base station. So the greatest possible freedom of movement during operation of the system is guaranteed. Depending on the configuration, up to 20 handhelds can be used at a base station simultaneously. In addition, the radio system via software is expandable. Stay at par with your models and! Not only alone, but also the club and the common hobby with friends
with the extensions it is possible to control via the radio-Master also vehicles with corresponding radio receivers directly in DCC format. The DCC command must therefore no longer be transferred necessarily across the tracks in the locomotive. For example, locomotives Garden railways can be controlled directly.
Features:
• High-resolution display with optimum readability in daylight and in the open.
• The main functions are as it were "blind" to use - Watch the
FREE Model, not to the controller screen
• encoders with direction change and cogging torque
• Best ergonomics and robust housing
• Easy and intuitive navigation
• Up to 9 999 decoder addresses
• Up to 128 steps
• Up to 24 locomotive special functions available
• locomotive database with locomotive name and function symbols, all KM1 models preinstalled
• Up to 2048 switching accessories
• Updateable for future applications and features - this is the system Radio for the
armed future
• Connection to system Control 7, computer (USB) and many other centers with LocoNet
connection
• range up to 100 m (open area)
• up to 20 wireless handheld controllers simultaneously on one base station
• recharge the battery via LocoNet connection
• option to Funkbertragung DCC commands (software update)
• option for use with GamesOnTrack position (software update)
