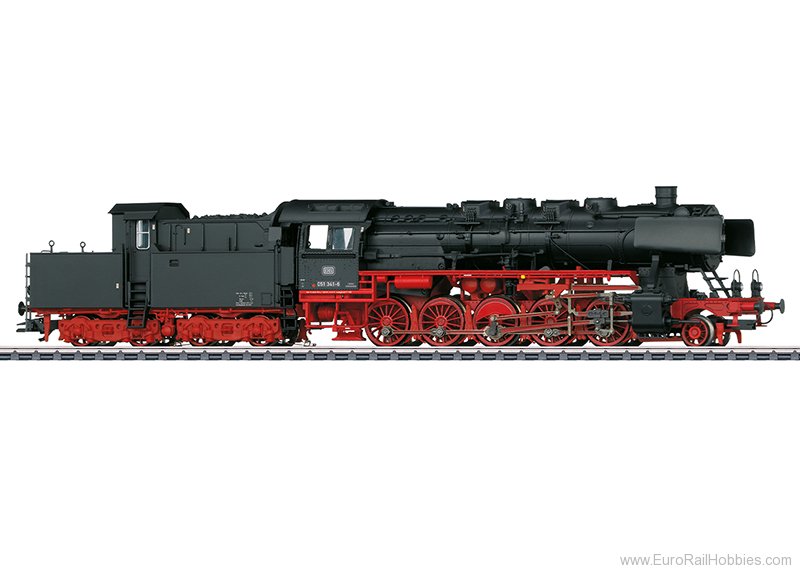

Prototype: German Federal Railroad (DB) class 051 steam freight locomotive with a cabin tender. Witte smoke deflectors, 4 boiler appliances, shortened running boards, DB Reflex glass lamps and inductive magnets on both sides of the locomotive. Road number 051 341-6. The locomotive looks as it did at the start of the Seventies.
Highlights
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. Triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting can be controlled separately in digital operation. Maintenance-free warm white LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with a guide mechanism and an NEM pocket on the rear of the tender and the front of the locomotive. The minimum radius for operation is 360 mm / 14-3/16. Piston rod protective sleeves and brake hoses are included.
Length over the buffers 26.5 cm / 10-7/16.
Digital Functions
| ControlUnit | MobileStation | MobileStation 2 | CentralStation 1/2 | CentralStation 3/2* Mobile Station 2** |
|
|---|---|---|---|---|---|
| Headlight(s) | * | * | * | * | * |
| Smoke generator contact | * | * | * | * | * |
| Steam locomotive op. sounds | * | * | * | * | * |
| Locomotive whistle | * | * | * | * | * |
| Direct control | * | * | * | * | * |
| Sound of squealing brakes off | * | * | * | * | |
| Engineer’s cab lighting | * | * | * | * | |
| Whistle for switching maneuver | * | * | * | * | |
| Bell | * | * | * | * | |
| Air Pump | * | * | * | ||
| Letting off Steam | * | * | * | ||
| Sound of coal being shoveled | * | * | * | ||
| Tipping grate | * | * | * | ||
| Water Pump | * | * | * | ||
| Injectors | * | * | * | ||
| Replenishing coal | * | * | * | ||
| Replenishing water | * | ||||
| Replenishing sand | * | ||||
| Sanding | * | ||||
| Switcher Double A Light | * | ||||
| Switching range + switching light | * | ||||
| Generator Sounds | * | ||||
| Control function | * | ||||
| Rail Joints | * | ||||
| Safety Valve | * | ||||
| Sound of Couplers Engaging | * |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
