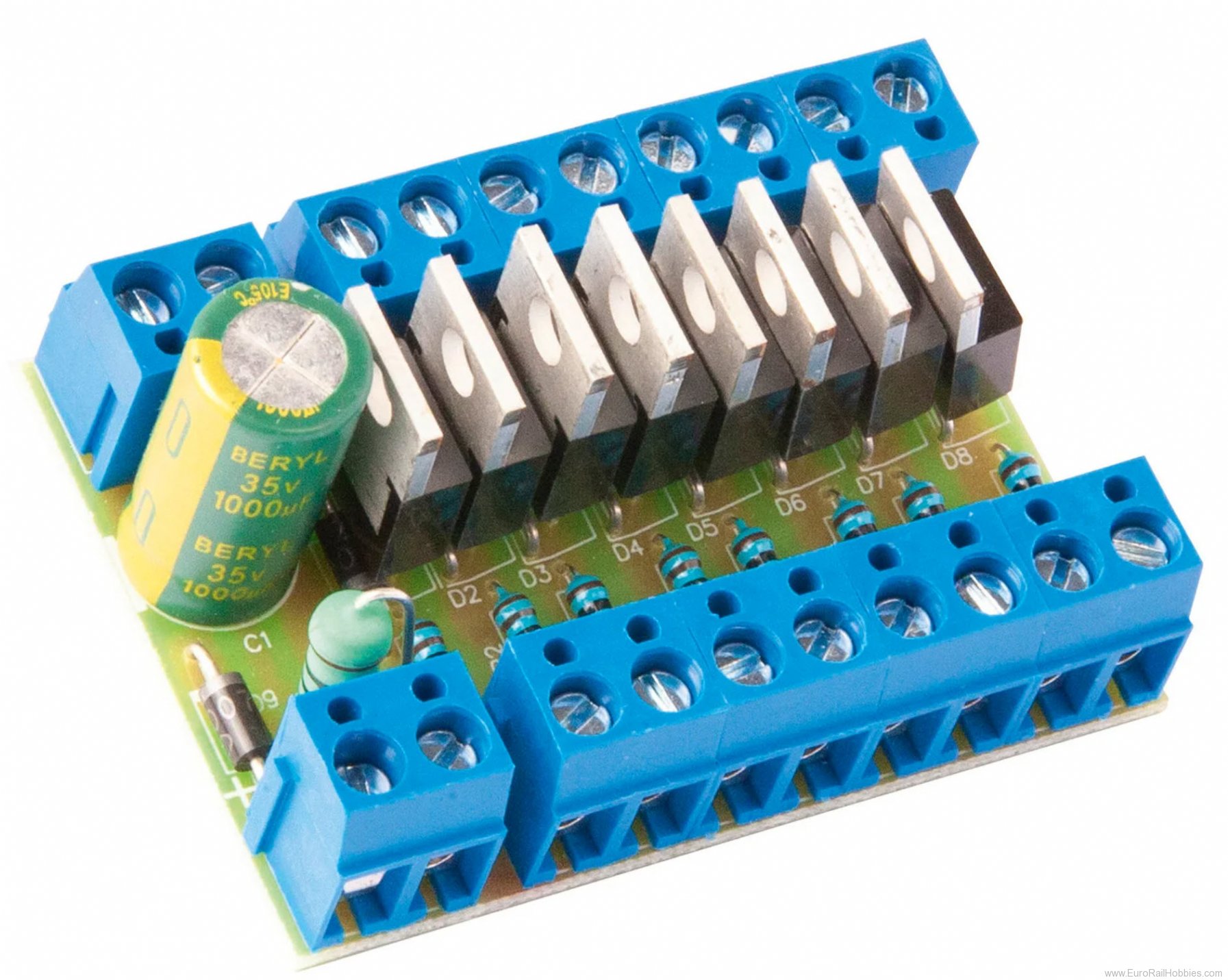

Whether you are new to the team or want to use your existing system: With the turnout module, conventional 2 x 4-button control consoles and other control consoles with tactile function can be used to control KATO and ROKUHAN switches. A total of 4 switches can be switched with each switch module.
The switches, the control panel and the power supply are connected via screw terminals. Furthermore, switching with reed contacts and digital switching with an upstream magnetic article decoder is possible. Soldering is not necessary. The connection is made to direct or alternating current with 10 to 16 volts.
The NOCH turnout module can also be connected to magnetic article decoders. On the output side, some decoders on the common connector have negative potential and others have positive potential. The NOCH switch module requires positive potential at the common connection, often referred to as "terminal C", at the respective switching output of the decoder. Such decoders are, for example: LENZ LS100, article number 1110 and ESU Switch Pilot V2.0 4-fold magnetic article decoder, article number 51820.
