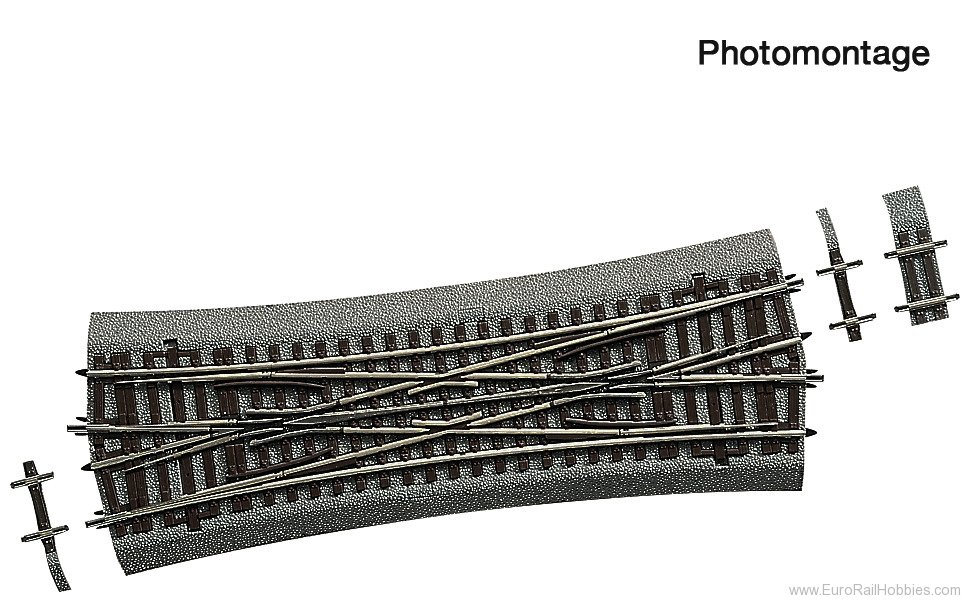

Double slip turnout DKW15 with bedding, manually operated. Design “Baeseler” with switch rails located at the outside.
Length 230 mm (standard length), crossing angle 15°, effective branch radius 1050 mm.
For diagonal installation two D4 and one D 12 spacers are included.
Owing to the geometrical characteristics of this type of double slip turnout it is necessary to always use it polarized.
Suitable turnout mechanisms (2 pieces are required): 42620 or 42624.
Please note the operating instructions!
| Specifications: |
| Measurements |
| Rail profile height |
|
02. Jan mm |
|
