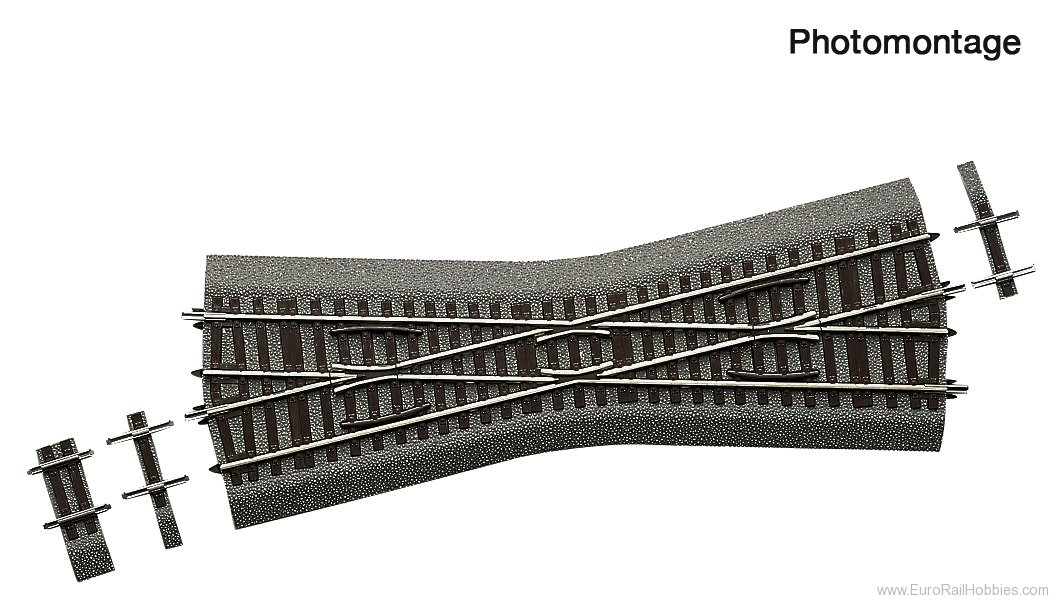

Crossing K15 with bedding.
Length 230 mm (standard length), crossing angle 15°.
The railroad lines that cross each other are not electrically isolated.
By using a 10019 relay it is possible to polarize the frogs and incoporate the crossing like a normal solenoid accessory in a route locking.
Two D4 and one D12 spacers are included for diagonal installation.
■ Frog and wheel guide completely revised
■ Prototypical passing of the frog possible
■ Groove width in the frog area according to NEM
Specifications: |
Measurements |
Rail profile height |
|
02. Jan mm |
|
