ROCO 70035

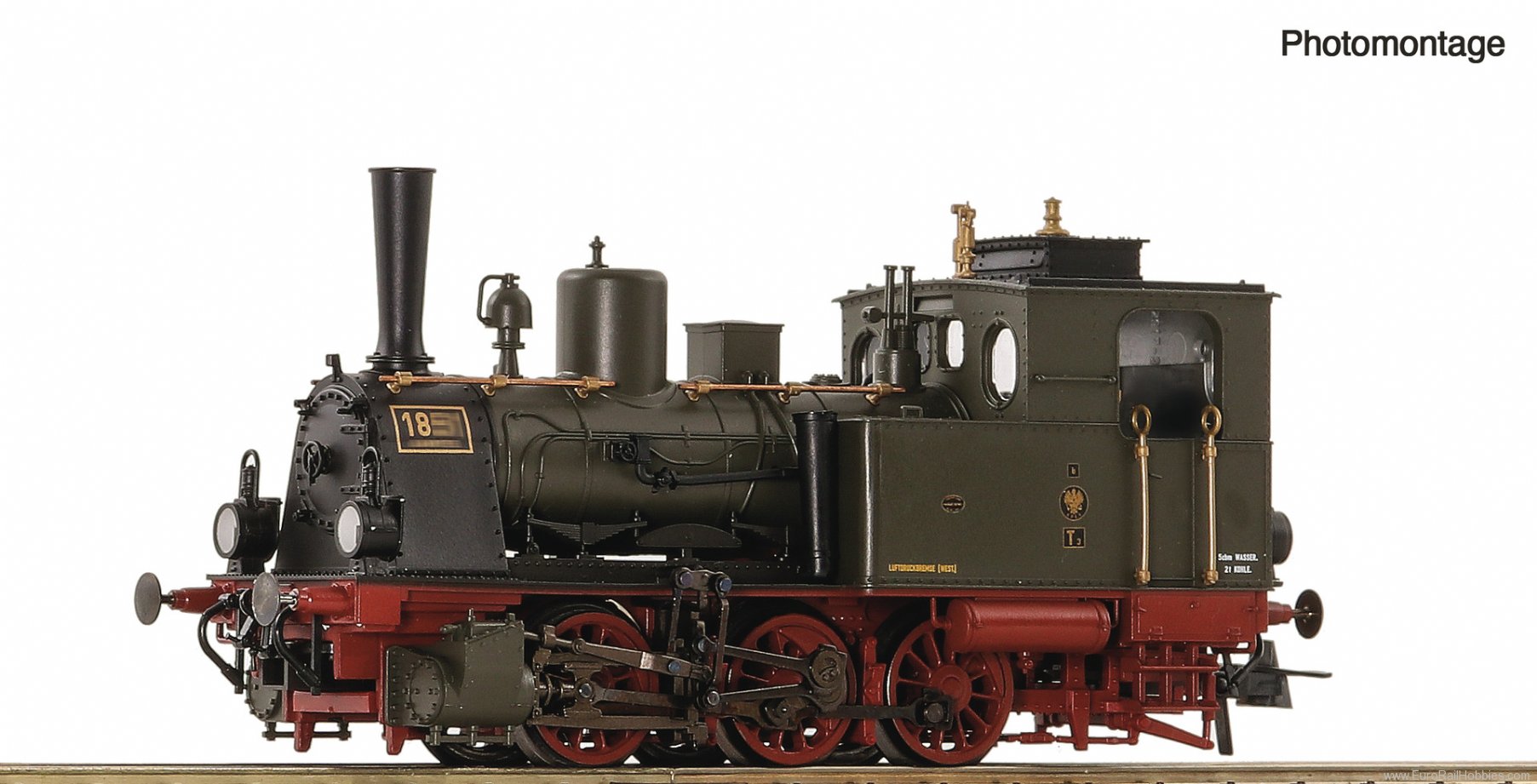

Steam locomotive class T3 of the Royal Prussian Railway Administration.

• Fully movable, delicately crafted Allan controller
• Metal die-cast undercarriage

From 1882 to 1910, approximately 1,550 tender locomotives of the type T3 in different designs were supplied to the Royal Prussian Railway Administration (K.P.E.V.) and other state railways. As the type Cn2, this locomotive had a friction load of 36 t in its M III-4p design, and was able to reach a maximum speed of 40 km/h with an output of 300 PSi.

General data

• Coupling: NEM shaft 362 with close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 3
• Article number: 70035
• Scale: H0
• Epoch: I
• Railway Company: KPEV

Electrical

• Head light: Direction dependent dual headlights
• LED head light: yes
• Control: DC Analog
• Interface: Electrical interface for traction units PluX16

Measurements

• Length over buffer: 101 mm
