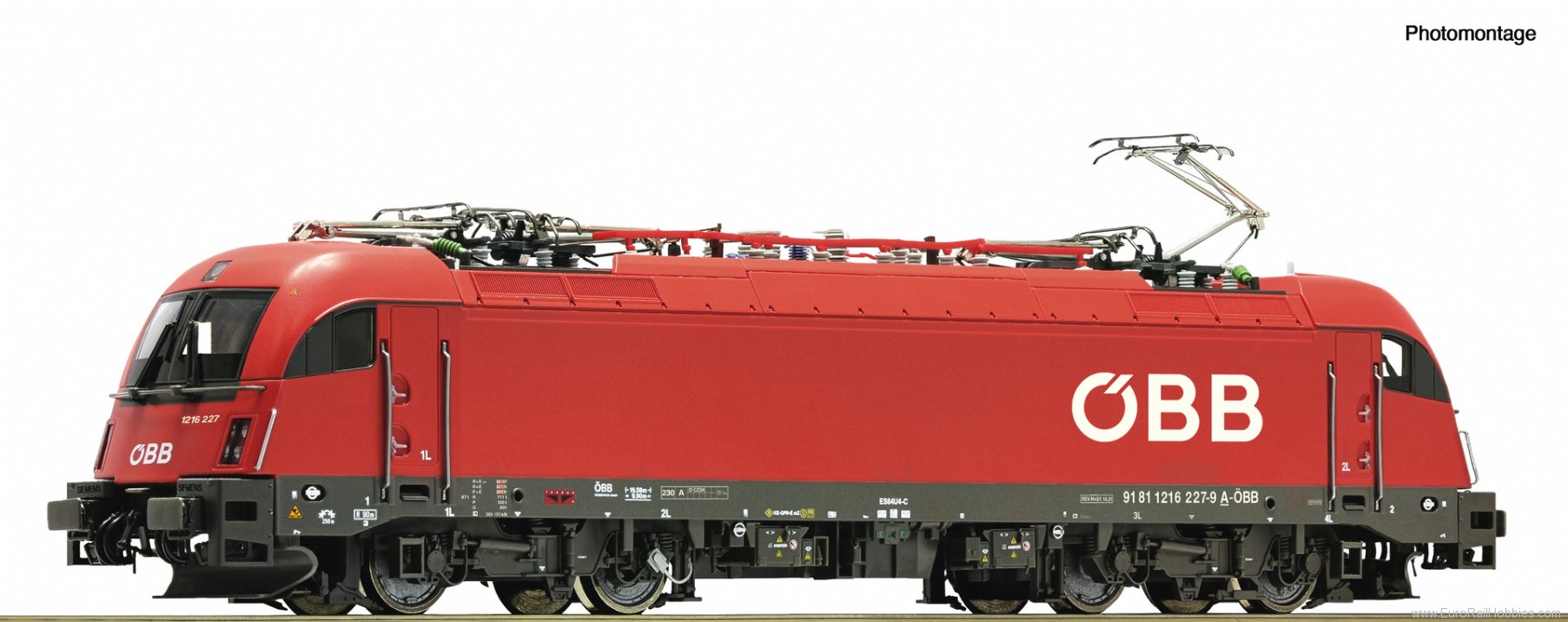

Electric locomotive 1216 227 of the Austrian Federal Railways.
• Finely detailed model with many separately attached plug-in parts
• Elaborate roof design with four pantographs
• Use in international passenger and freight transport
• With switchable high beam and individually switchable headlight or tail light in digital mode
The class 1216 electric locomotives (Taurus 3) are multi-system 3-phase current general-purpose locomotives based on the technology used in the Siemens EuroSprinter type family. The exterior and the high-speed bogies were taken over from the first two Taurus generations, but with some detail changes.
Between 2006 and 2008, 50 locomotives were delivered to the ÖBB. They have been designed for operation on lines with a network voltage of 15kV/16.7 Hz, 25 kV/50 Hz and 3 kV/DC. The maximum power output totals 6,400 kW and the top speed is 230 km/h. They are deployed in national and international passenger and freight transport.
The locomotives therefore have to be equipped with the respective country packages for the individual countries they pass through. These packages include the special equipment required for train radio, display, language editions, train control systems, lettering and additional equipment. The version C of these locomotives (1216.2) has been equipped with an additional country package for the Czech Republic and Slovakia to supplement their field of use in Austria and Germany.
General data
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 3
- Number of axles with traction tyres: 2
- Article number: 7520032
- Scale: H0
- Epoch: VI
- Railway Company: ÖBB
Electrical
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Control: DC Digital
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Decoder-Type: MS450P22
- Sound: yes
- Buffer capacitor: yes
Measurements
- Length over buffer: 225 mm
