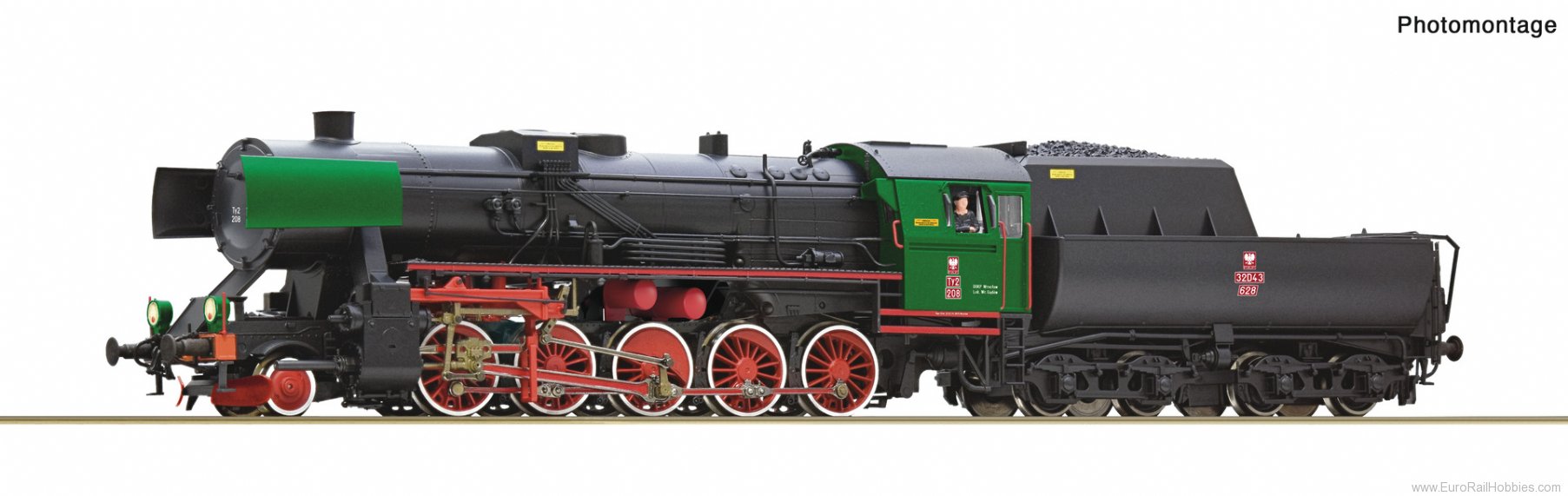

Steam locomotive Ty2 (ex DRB class 52) of the Polish State Railways.
Drive on two axles of the tender and via cardan shaft on all five drive axles of the locomotive.
* Design with a green driver's cab and eye-catching decorations
* With two large lamps at the front and also at the rear of the tender
* Cowcatcher with rounded clearing plates
* Authentic smoke deflectors, rounded on the inside
* Z21 driver's cab available
The Class Ty2 steam locomotives of the Polish State Railways (PKP) began operating in 1942. They were Class 52 wartime locomotives of the Deutsche Reichsbahn. After the Second World War, 1.207 of them remained with the PKP. The Ty2 became the largest locomotive series in Poland until the end of the steam traction era. Several locomotives have been preserved to this day.
General data
| Coupling |
Close coupler motion link between locomotive and tender, NEM shaft 362 with close coupling mechanism at the tender |
| Minimum radius |
358 mm |
| Flywheel |
yes |
| Z-21 Cab |
yes |
| Number of driven axles |
7 |
| Number of axles with traction tyres |
2 |
| Article number |
78112 |
| Scale |
H0 |
| Epoch |
III-IV |
| Railway Company |
PKP |
Electrical
| Head light |
Direction dependent dual headlights |
| LED head light |
yes |
| Control |
AC |
| Interface |
Electrical interface for traction units PluX16 |
| Digital decoder |
PluX16 |
| Sound |
yes |
Measurements
| Length over buffer |
265 mm |
