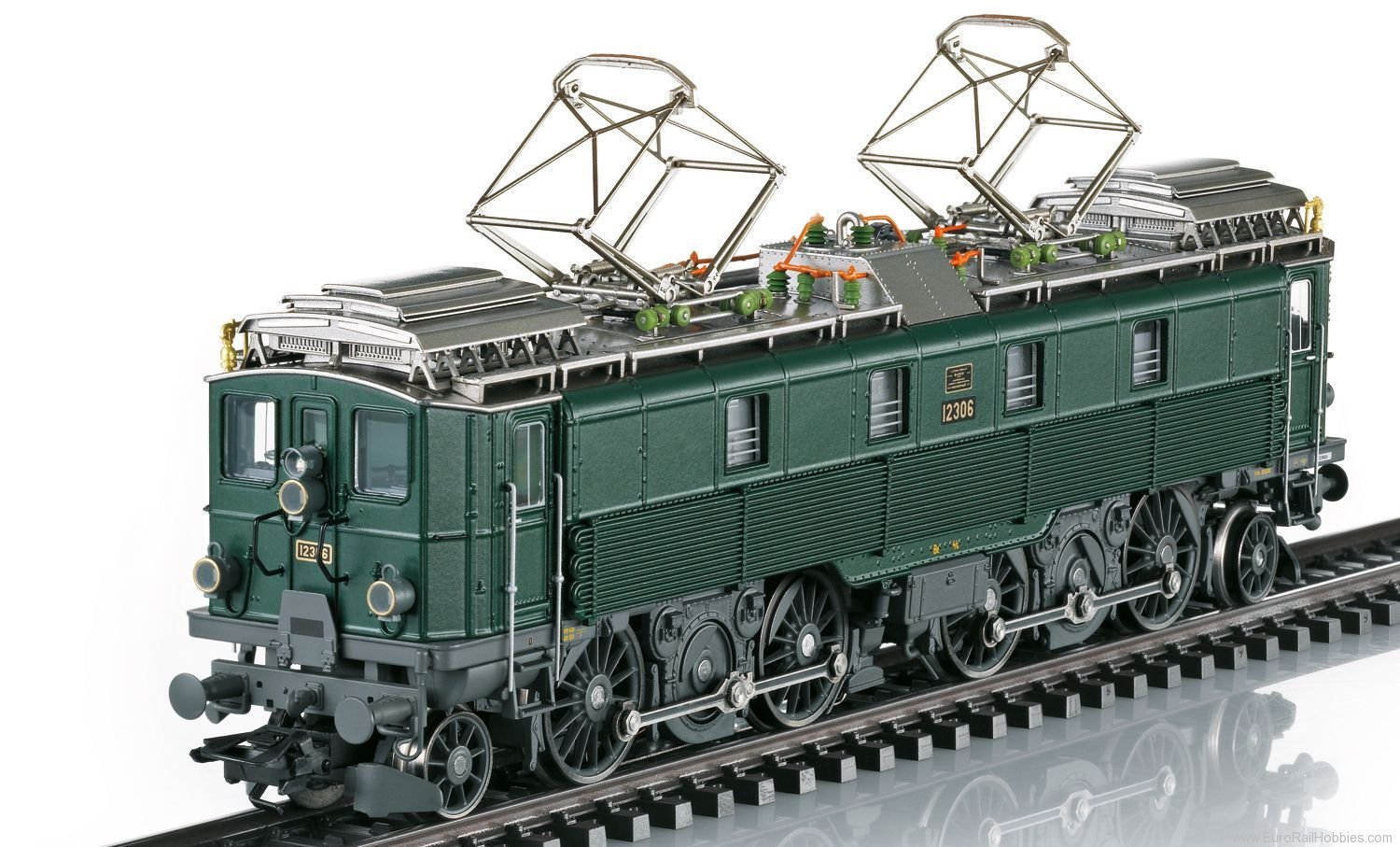

Prototype: Swiss Federal Railways (SBB) class Be 4/6 electric locomotive. Locomotive from the first production series. Fir green basic paint scheme with gray running gear. With older design buffers, cab doors at the ends of the locomotive with walkover plates, with sanding equipment, with an oncoming train light, and with an inductive magnet. Lengthwise cooling lines with 6 vertical mounting brackets. Road number 12306. The locomotive looks as it did around 1950.
Highlights
Model: The locomotive has an mfx+ digital decoder and extensive sound and light functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. Both driving wheels and jackshafts in each group of driving wheels powered using cardan shafts. Traction tires. The locomotive frame is articulated to enable the locomotive to negotiate sharp curves. Triple headlights and 1 white marker light (Swiss headlight / marker light code) change over with the direction of travel, will work in conventional operation, and can be controlled digitally. When the locomotive is running "light" the lighting can be changed to 1 red marker light. The running authorization lights can be controlled separately in digital operation. The headlights at Locomotive Ends 2 and 1 can be turned off separately in digital operation. The locomotive has the double "A" light function. The cab lighting and engine room lighting can be turned off separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. This locomotive has highly detailed metal construction with many separately applied details, such as cooling pipes for the transformer oil. The cabs and engine room are modelled. Sanding equipment is included on the groups of driving wheels. The roof equipment is detailed with heating resistors, roof conductors, insulators, lightning arrester coils, and roof walk boards as well as double-arm pantographs with a simple contact strip. The minimum radius for operation is 360 mm / 14-3/16". Brake hoses, imitations of prototype couplers, and access ladders are included.
Length over the buffers 18.9 cm / 7-7/16".
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
|---|---|---|---|---|---|
| Headlight(s) |
*
|
*
|
*
|
*
|
*
|
| Marker light(s) |
*
|
*
|
*
|
*
|
*
|
| Electric locomotive op. sounds |
*
|
*
|
*
|
*
|
*
|
| Locomotive whistle |
*
|
*
|
*
|
*
|
*
|
| Direct control |
*
|
*
|
*
|
*
|
*
|
| Interior lights |
*
|
*
|
*
|
*
|
|
| Engineer''s cab lighting |
*
|
*
|
*
|
*
|
|
| Whistle for switching maneuver |
*
|
*
|
*
|
*
|
|
| Engineer''s cab lighting |
*
|
*
|
*
|
||
| Sound of squealing brakes off |
*
|
*
|
*
|
||
| Headlight(s): Cab1 End |
*
|
*
|
*
|
||
| Headlight(s): Cab2 End |
*
|
*
|
*
|
||
| Blower motors |
*
|
*
|
*
|
||
| Letting off Air |
*
|
*
|
*
|
||
| Pantograph Sounds |
*
|
*
|
*
|
||
| Sanding |
*
|
||||
| Rail Joints |
*
|
||||
| Brake Compressor |
*
|
||||
| Conductor''s Whistle |
*
|
||||
| Doors Closing |
*
|
||||
| Sound of Couplers Engaging |
*
|
||||
| Operating Sounds 1 |
*
|
||||
| Switching maneuver |
*
|
||||
| Special light function |
*
|
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
