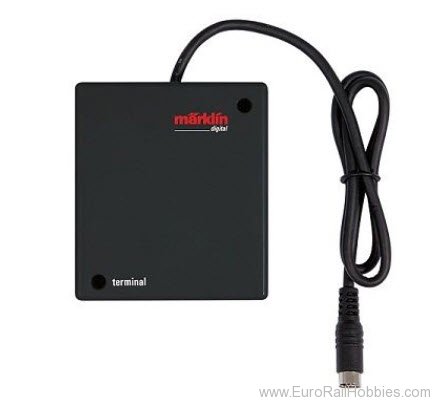

Potential connection for additional devices from the systems program for Central Station.
- Suitable for connecting the 60172/174 Booster; 60128 Connector or Mobile Stations to the Central Station.
- Fixed 9-pin lead cable, 60 cm / 23.5/8" long and 9-pin socket for an additional terminal or other devices on the data bus system.
- 4 7-pin sockets for a connection with the mobile station or other pheripherials.
- The 7 pin 60883 ( L88) plugs into the 7 pin receptacle of the CS3. The 60145 ( terminal ) 9 pin plugs into the same type socket on the CS 3....the 60175 ( booster) -- 7 pin cable plugs into the 60145, AND the 9 pin cable for the master / slave connection with the CS 2 plugs into the 60145
- Dimensions 96 x 85 x 40 mm / 3-25/32 x 3-11/32 x 1-9/16".
