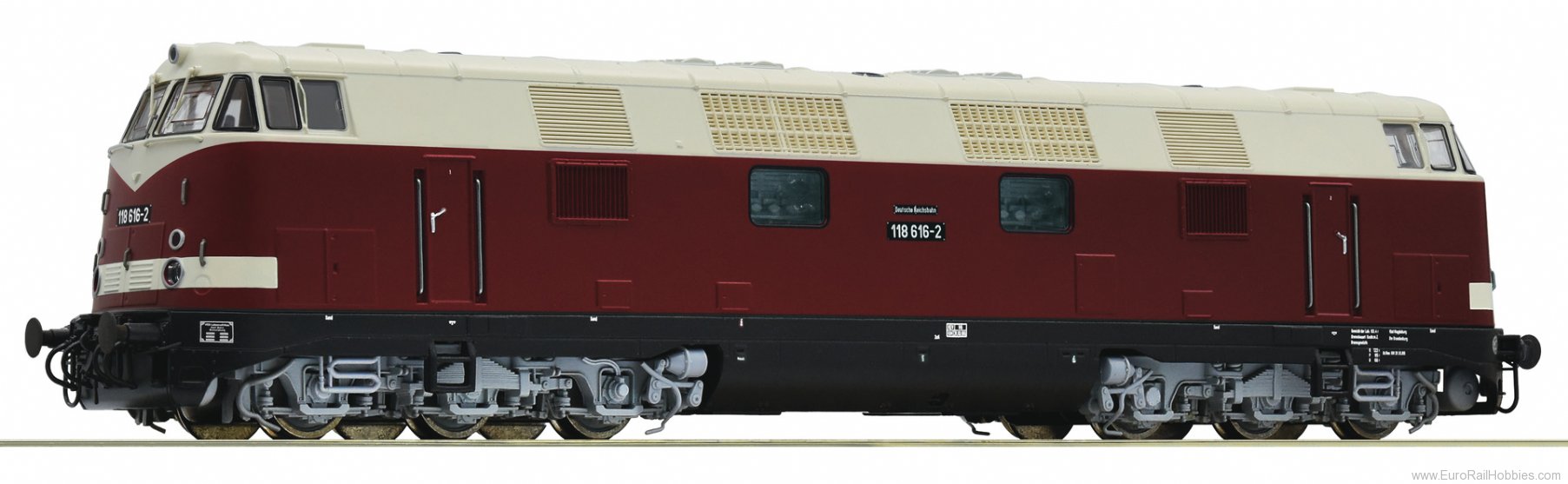

Diesel locomotive class 118 of the Deutsche Reichsbahn.
* Rich detailing on the model with many separately applied plug-in parts - partially etched
* 6-axle model with delicately designed wheel sets
* Variant in "Sparlack" livery
* The locomotives are based at the depot Leipzig-Süd
* Driver's cab and machine room can be illuminated
* Sound "Henning"
The locomotive series V 180 of the Deutsche Reichsbahn was the largest diesel series ever built in the GDR. It was initially built in a four-axle version with two 2-axle bogies - later there were also 6-axle variants. The six-axle version with a low axle load of 15.6 t is even today still considered to be a masterpiece of the engineers involved. The low axle load allows for an universal use so the locomotive can also operate on branchlines. In addition to that, it has also the license to haul trains over steep railway sections. The resulting potential application area is unique with large German diesel locomotives.
The V 180 replaced various steam locomotive series in the performance classes above the V100 and therefore accelerated the traction change at the German Reichsbahn. In 1995 the last locomotives of these types stopped operating for the DB AG. Afterwards numerous locomotives were sold to private railway companies.
General data
- Number of axles with traction tyres - 2
- Number of driven axles - 4
- Coupling - NEM shaft 362 with close coupling mechanism
- Minimum radius - 358 mm
- Flywheel - yes
Electrical
- Sound - yes
- Interface - Electrical interface for traction units PluX22
- Head light - Two direction dependent tail lights and dual headlights.
- Motor - 5-pole motor
- Buffer capacitor - yes
