G Scale Command Stations and Expansion

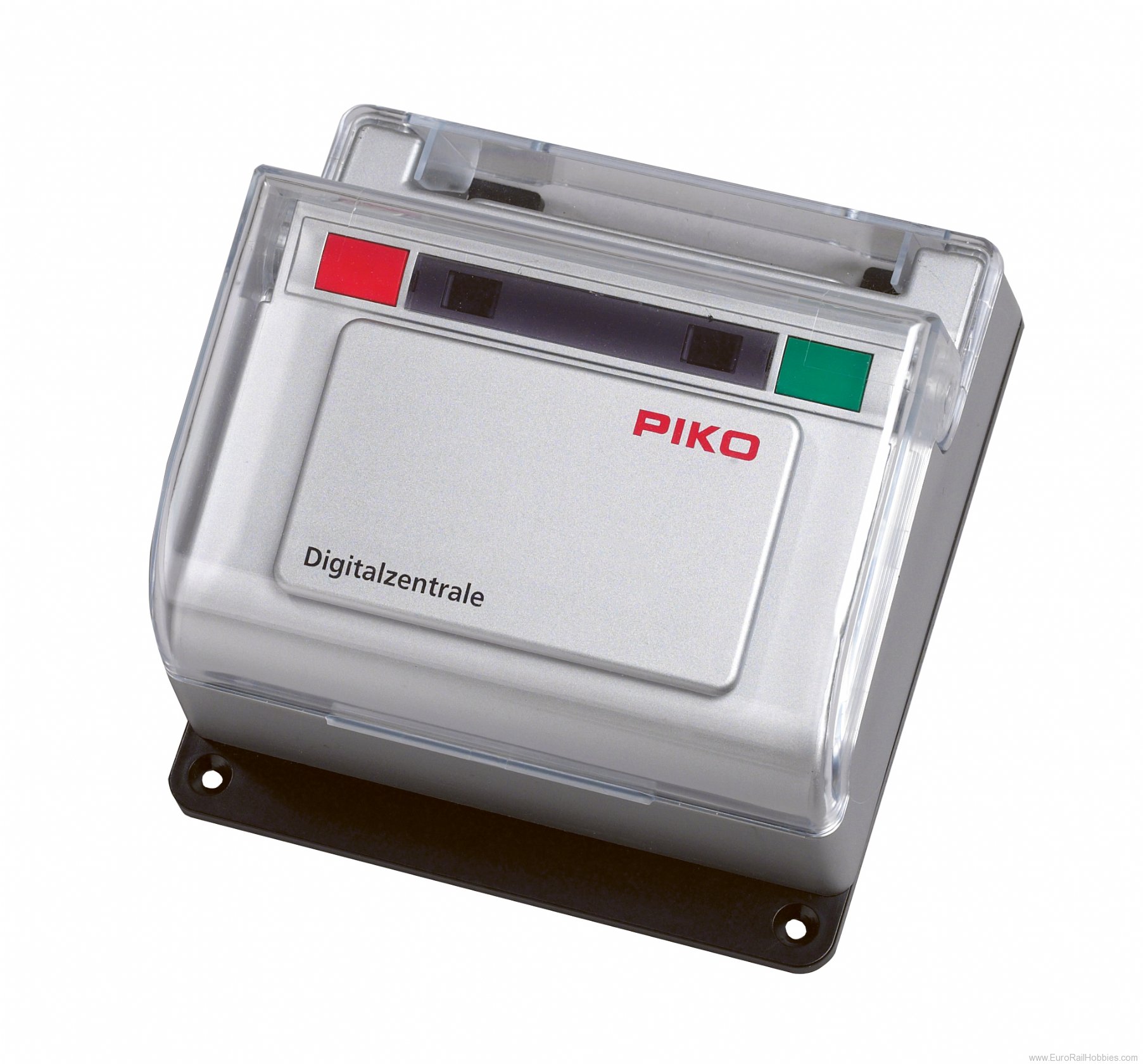

Trouble-free operation can only be guaranteed in conjunction with the PIKO power supply 35000. Central power supply only with DC power supply.  The digital center is the core of the digital control for the G gauge. At 22 V, it can put up to 5 A on the track. This allows longer trains with several locomotives to be controlled simultaneously on garden railways. The digital center works according to the NMRA-DCC standard and can therefore also be used with DCC decoders from other manufacturers. Stop and reset buttons allow very simple operation. The operating status is indicated by LEDs. The connection is made conveniently via 4 pressure clamps. Control can either be wired using the Navigator (35017) or wirelessly using the Navigator (35017) and radio receiver (35018).

  • Power supply 16-24V DC
  • Track voltage maximum 22V DCC
  • Maximum total current regulated 5A
  • Overload, short circuit and temperature monitoring
  • 9999 locomotive addresses
  • 14, 28 and 128 speed steps
  • 2048 turnout addresses
  • 2048 feedback addresses
  • Functions F1 - F16
  • Up to 30 bus devices can be connected
  • Illuminated "emergency stop" button
  • Illuminated "Reset + program" button
  • Protected against splash water by cover flaps

2010 New Item
