This product does not have a specific scale associated with it. It will appear in our product lists regardless of what scale you have selected . Please check the description (if available) to ensure that it meets you needs.

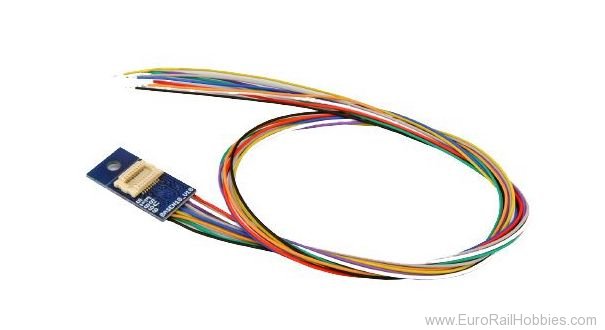

The Next18 adapter board is suitable if you want to digitize a very small locomotive without a digital interface, but do not want to wire the decoder freely. With dimensions of only 13.0 mm x 9.0 mm, the board is kept extremely small and also has a breakable fastening tab. For the functions AUX3 and AUX4, which are standard on the decoder as logic outputs
power amplifiers (each approx. 180mA) are on board. In total, up to 6 outputs can be used. Already soldered connection cables with a length of approx. 20 cm for the most important contacts ensure easy handling and wiring.
Dimensions: length 13.0 mm x 9.0 mm (with fastening tongue: 18.0 mm x 9.0 mm)
