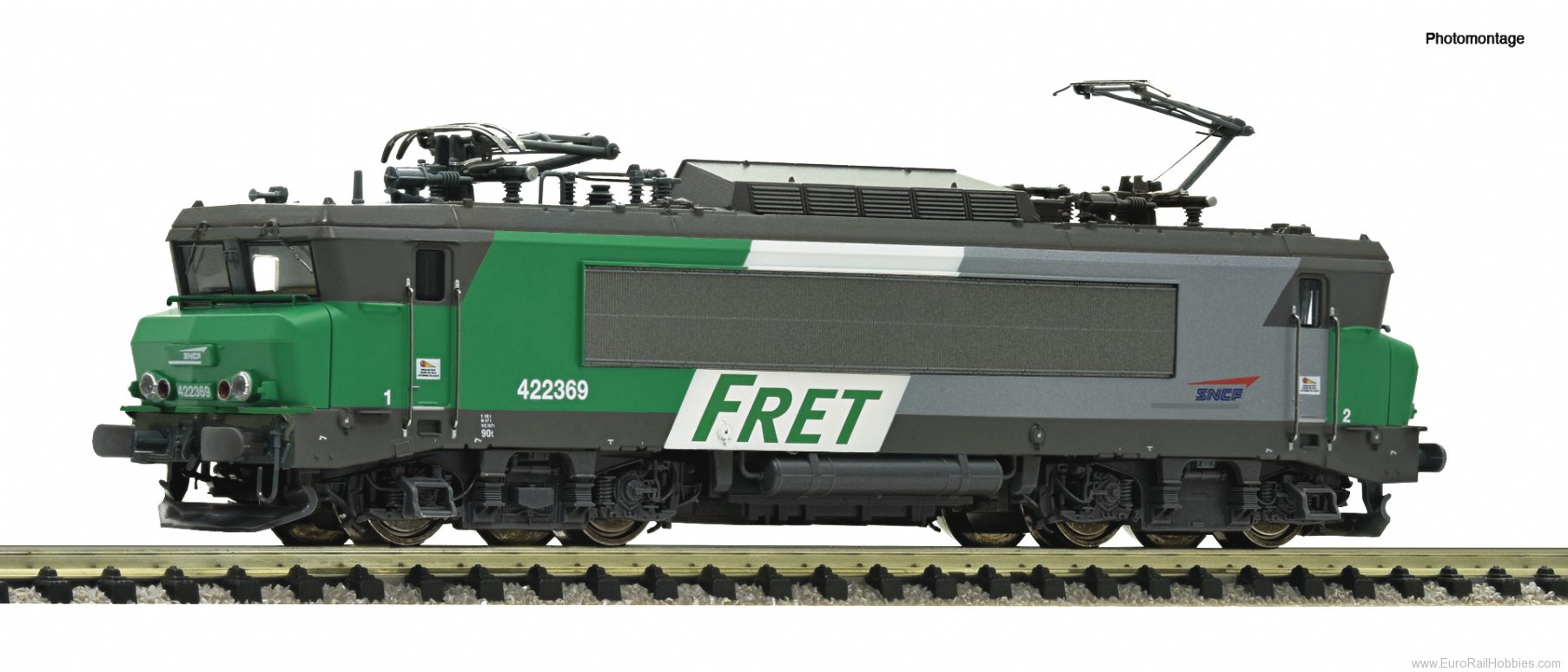

Electric locomotive BB 422369 of the National French Railways.
• FRET colour scheme
• Finely-detailed design with separately attached plug-in parts
• Filigree pantograph design
• Headlight switchable in digital mode in line with the French prototype
• Digitally switchable sound functions
The BB 22200 is a French electric locomotive class for use both on the SNCF's 1.5 kV electrified DC network and on the 25 kV 50 Hz electrified AC network. The design of these locomotives, with their so-called nez cassé (broken nose), was created by the Frenchman Paul Arzens, who was responsible for designing several SNCF locomotives around that time. In the years 1976 to 1986, a total of 205 locomotives in six different construction series were produced by Alstom.
From the year 1999 onwards, the locomotives were distributed between the different business units. The locomotives which were issued to the freight transport sector were given the grey/green/white FRET livery.
General data
- Coupling: NEM shaft 355 with close coupling mechanism
- Minimum radius: 192 mm
- Flywheel: yes
- Traction tyres: 2
- Number of driven axles: 4
- Scale: N
- Epoch: V-VI
- Railway Company: SNCF
Electrical
- Head light: Two direction dependent tail lights and dual headlights.
- LED head light: yes
- Additional light function: yes
- Decoder-Type: MS590N18
- Sound: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
- Control: 2L - Digital
- Interface: Electrical interface for traction units Next18
- Digital decoder: Next18
Measurements
- Length over buffer: 109 mm
