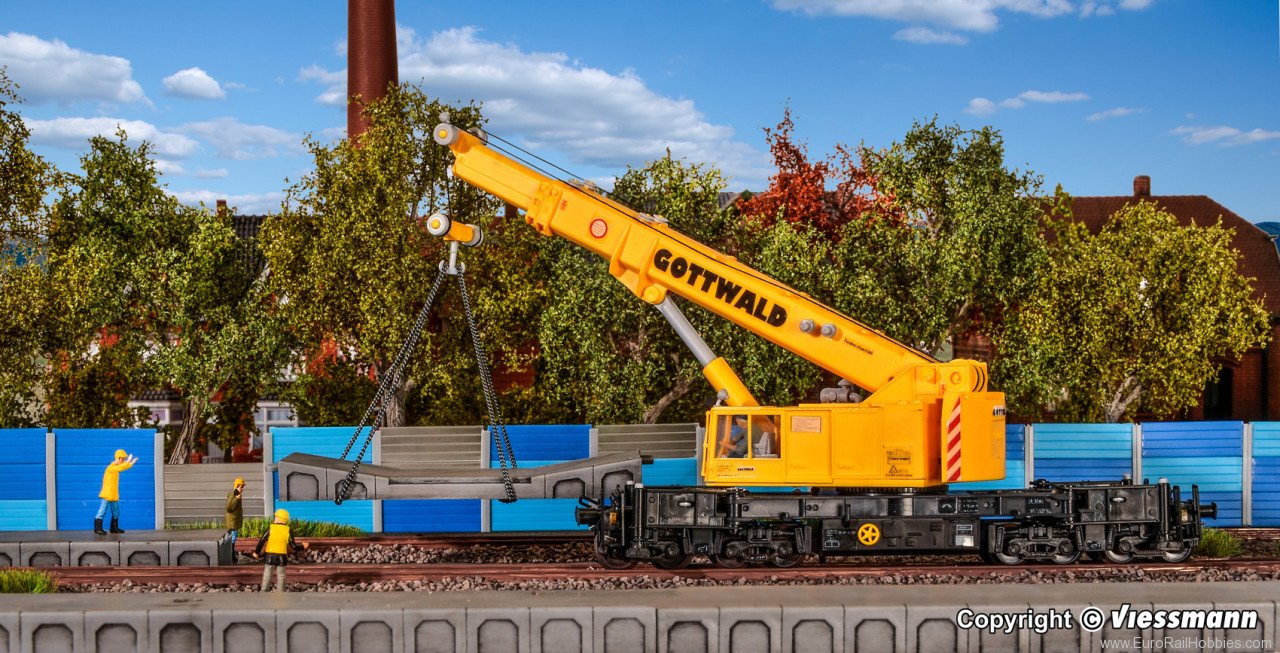

Kit. Prototype data: Railbound heavy crane GOTTWALD GS 100.06 T with 4 2-axle gears with 8 wheelsets, 4 of them propelled, lob 13.0 m. Bogie pin distance 8.0 m, working weight 128.0 t, max. speed as part of a train 120 km/h, own speed 20 km/h. Max. bearing load while supported by braces 100.0 t, otherwise 72.5 t standing freely on the track. Working area 0.5 - 15.0 m in front of buffers, radius 7.0 - 21.5 m. Under catenary extendable from 2.5 - 10.0 m, rotation range > 360°. MAN 2866 diesel engine with 190 kW/258 HP at 1800 rpm.
With NEM shaft.
Driving position Lob 18.5 x W 4.5 x H 5.0 cm / Extended Lob 18.5 x W 8.0 x H 22.0 cm
Level of difficulty: 2 (advanced)
Manufacturer Instructions
