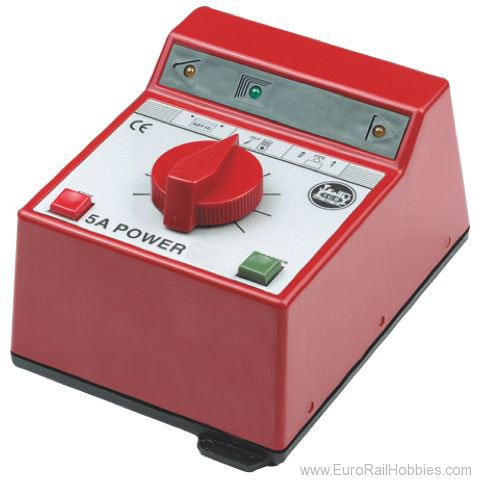

This electronic locomotive controller for analog operation offers the latest technology with high operating current and modern features for your analog operated LGB layout:
- Maximum of 5 amps operating current, for use with the 51095 100-watt switched mode power pack. Very fine control and smoothed DC voltage.
- Adjustable control range: +/- 135° with a zero position in the center / booster button with programmable acceleration, Stop/Halt button.
- LED indicators for Stop, overload, ready for operation, and direction of travel.
- Connections for wire up to 1.5 square millimeters in cross section / approximately 15/16 gauge, protected against short circuits.
- Output: 0-24 volts DC.
- Operating current: maximum 5 amps.
- Dimensions 160 x 120 x 95 mm / 6-5/16" x 4-3/4" x 3-3/4". This item replaces item number 51070.
New design.
Particularly suitable for use with 51095.
