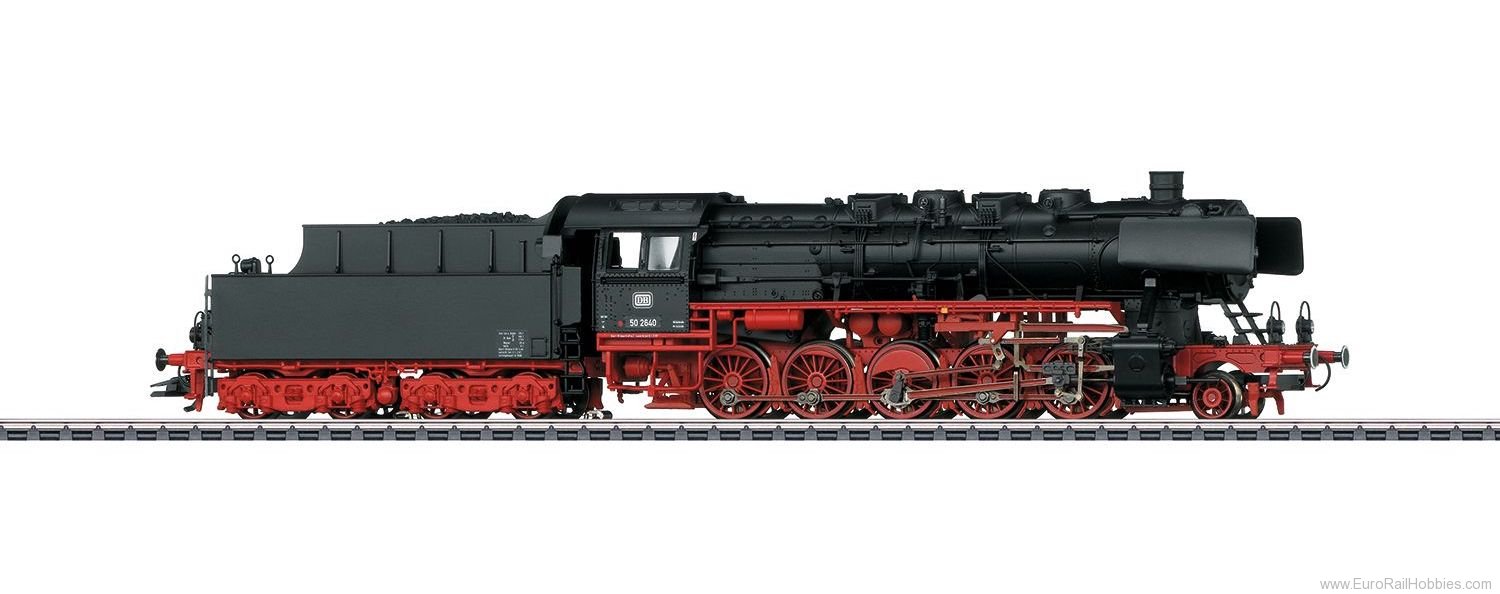

Prototype: German Federal Railroad (DB) class 50 steam freight locomotive, with a type 2´2´T26 standard design box-style coal tender as it originally looked. Witte smoke deflectors, 4 boiler domes, standard design cab, shortened running boards, DB Reflex glass lamps, and inductive magnets on both sides included. Locomotive road number 50 2640. The locomotive looks as it did around 1967.
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. A 7226 smoke unit can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting can be controlled separately in digital operation. Maintenance-free warm white LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender and it can be adjusted for curves. The rear of the tender and the front of the locomotive have close couplers with NEM pockets and guide mechanisms. The minimum radius for operation is 360 mm / 14-3/16". Protective piston rod sleeves and brake hoses are included.
Length over the buffers 26.4 cm / 10-3/8".
Highlights
This model can be found in a DC version in the Trix H0 assortment under item number 22787.
Features
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** | |
|---|---|---|---|---|---|
| Headlight(s) |
*
|
*
|
*
|
*
|
*
|
| Smoke generator contact |
*
|
*
|
*
|
*
|
*
|
| Steam locomotive op. sounds |
*
|
*
|
*
|
*
|
*
|
| Locomotive whistle |
*
|
*
|
*
|
*
|
*
|
| Direct control |
*
|
*
|
*
|
*
|
*
|
| Sound of squealing brakes off |
*
|
*
|
*
|
*
|
|
| Engineer's cab lighting |
*
|
*
|
*
|
*
|
|
| Bell |
*
|
*
|
*
|
*
|
|
| Whistle for switching maneuver |
*
|
*
|
*
|
*
|
|
| Air Pump |
*
|
*
|
*
|
||
| Letting off Steam |
*
|
*
|
*
|
||
| Sound of coal being shoveled |
*
|
*
|
*
|
||
| Tipping grate |
*
|
*
|
*
|
||
| Water Pump |
*
|
*
|
*
|
||
| Injectors |
*
|
*
|
*
|
||
| Replenishing fuel |
*
|
||||
| Replenishing fuel |
*
|
||||
| Replenishing fuel |
*
|
||||
| Sanding |
*
|
||||
| "Switcher Double ""A"" Light" |
*
|
||||
| Switching maneuver |
*
|
||||
| Generator Sounds |
*
|
||||
| Operating sounds |
*
|
||||
| Rail Joints |
*
|
||||
| Safety Valve |
*
|
||||
| Sound of Couplers Engaging |
*
|
||||
| Cab chatter |
*
|
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
