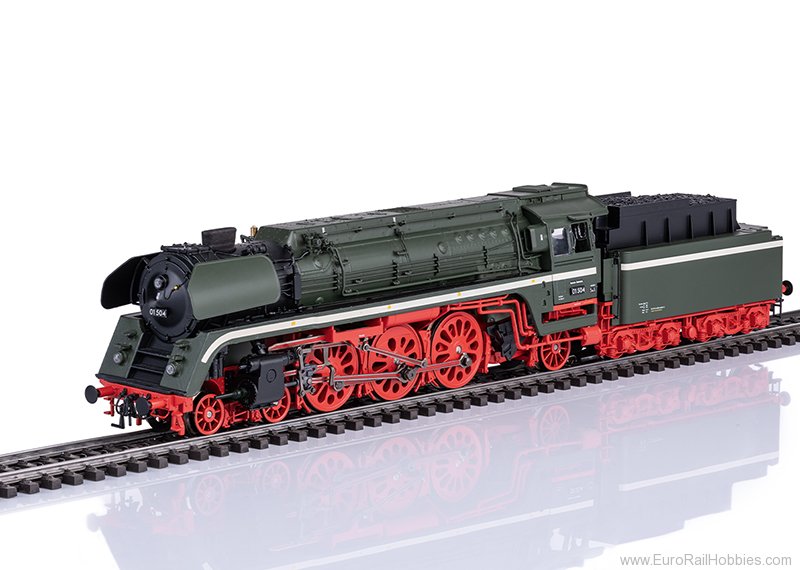

Prototype: Class 01.5 express steam locomotive with a type 2´2´T34 coal tender. Reko version of the German State Railroad of the GDR (DR/GDR). Dark green basic paint scheme with white decorative striping. Also included, Boxpok wheels, special design Witte smoke deflectors for the class 01.5, continuous dome streamlining, and side cladding of the running boards. Locomotive road number 01 504. The locomotive looks as it did around 1964.
Highlights
Model: The locomotive has an mfx+ digital decoder and extensive light and sound functions. It also has controlled high-efficiency propulsion with a flywheel, in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. A 7226 smoke unit can be installed in the locomotive. Triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting can also be controlled digitally. Maintenance-free warm white LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with a guide mechanism and an NEM pocket on the rear of the tender. The minimum radius for operation is 360 mm / 14-3/16. Piston rod protection sleeves and brake hoses are included. Length over the buffers 28.2 cm / 11-1/8.
Digital Functions
| ControlUnit | MobileStation | MobileStation 2 | CentralStation 1/2 | CentralStation 3/2* Mobile Station 2** |
|
|---|---|---|---|---|---|
| Headlight(s) | * | * | * | * | * |
| Smoke generator contact | * | * | * | * | * |
| Steam locomotive op. sounds | * | * | * | * | * |
| Locomotive whistle | * | * | * | * | * |
| Direct control | * | * | * | * | * |
| Sound of squealing brakes off | * | * | * | * | |
| Engineer’s cab lighting | * | * | * | * | |
| Whistle for switching maneuver | * | * | * | * | |
| Operating sounds | * | * | * | * | |
| Letting off Steam | * | * | * | ||
| Tipping grate | * | * | * | ||
| Air Pump | * | * | * | ||
| Water Pump | * | * | * | ||
| Injectors | * | * | * | ||
| Sanding | * | * | * | ||
| Replenishing coal | * | * | * | ||
| Replenishing water | * | ||||
| Replenishing sand | * | ||||
| Switcher Double A Light | * | ||||
| Switching range + switching light | * | ||||
| Generator Sounds | * | ||||
| Operating sounds | * | ||||
| Rail Joints | * | ||||
| Sound of uncoupling | * | ||||
| Sound of Couplers Engaging | * |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
