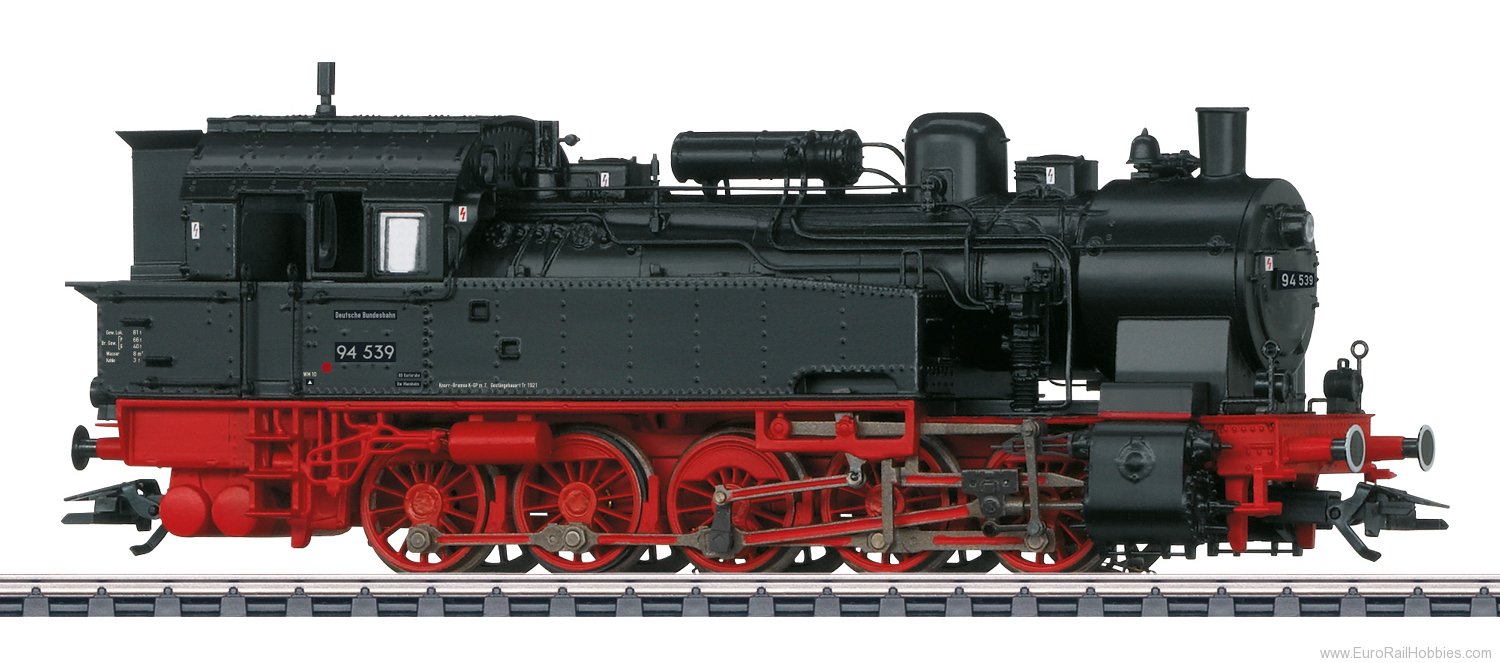

Prototype: German Federal Railroad (DB) class 94.5-17 (former Prussian T16.1) steam tank locomotive, with bell and pre-warmer on the top of the boiler, with radio antenna for switching, older design buffers, and buffer plate warning stripes. Road number 94 539. The locomotive looks as it did around 1960/61.
Highlights
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive is constructed mostly of metal. A 72270 smoke generator can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke generator, which can be installed, will work in conventional operation and can be controlled digitally. The headlights are maintenance-free warm white LEDs. Protective piston rod sleeves and brake hoses are included.
Length over the buffers 14.6 cm / 5-3/4".
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
|---|---|---|---|---|---|
| Headlight(s) | * | * | * | * | * |
| Smoke generator contact | * | * | * | * | * |
| Steam locomotive op. sounds | * | * | * | * | * |
| Locomotive whistle | * | * | * | * | * |
| Direct control | * | * | * | * | * |
| Sound of squealing brakes off | * | * | * | * | |
| Bell | * | * | * | * | |
| Whistle for switching maneuver | * | * | * | * | |
| Air Pump | * | * | * | * | |
| Letting off Steam | * | * | * | ||
| Sound of coal being shoveled | * | * | * | ||
| Tipping grate | * | * | * | ||
| Water Pump | * | * | * | ||
| Injectors | * | * | * | ||
| Rail Joints | * | * | * | ||
| Cab Radio | * | * | * | ||
| Replenishing coal | * | ||||
| Replenishing water | * | ||||
| Replenishing sand | * | ||||
| Sanding | * | ||||
| Sound of Couplers Engaging | * | ||||
| Conductor's Whistle | * | ||||
| Safety Valve | * | ||||
| "Switcher Double ""A"" Light" | * | ||||
| Switching range + switching light | * | ||||
| Generator Sounds | * | ||||
| Special sound function | * |
