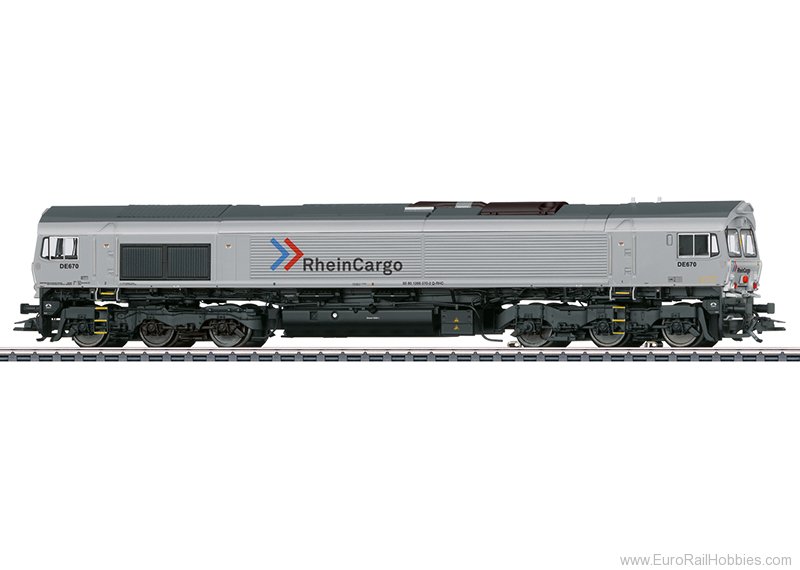

Prototype: JT42CWR diesel electric freight locomotive, better known as class 66. Diesel locomotive painted and lettered for RheinCargo, Inc. & Co. KG, Neuss. The locomotive looks as it did in 2022.
Highlights
Model: The locomotive has an mfx+ digital decoder and extensive sound and light functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. 4 axles powered using cardan shafts. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive Ends 2 and 1 can be turned off separately in digital operation. When the headlights are off at both ends, the Double 'A' Light function is on. The cab lighting can be controlled digitally. The control desk lighting can be controlled digitally. Maintenance-free, warm white and red LEDs are used for the lighting. The locomotive has a factory-installed smoke generator. It also has many separately applied details. The locomotive has detailed buffer beams. Various detail parts that can be installed on the locomotive are included.
Length over the buffers approximately 24.7 cm / 9-3/4.
Digital Functions
| ControlUnit | MobileStation | MobileStation 2 | CentralStation 1/2 | CentralStation 3/2* Mobile Station 2** |
|
|---|---|---|---|---|---|
| Headlight(s) | * | * | * | * | * |
| Smoke generator | * | * | * | * | * |
| Diesel locomotive op. sounds | * | * | * | * | * |
| High Pitch Horn | * | * | * | * | * |
| Direct control | * | * | * | * | * |
| Sound of squealing brakes off | * | * | * | * | |
| Headlight(s): Cab2 End | * | * | * | * | |
| Low Pitch Horn | * | * | * | * | |
| Headlight(s): Cab1 End | * | * | * | * | |
| Engineer’s cab lighting | * | * | * | ||
| Blower motors | * | * | * | ||
| Control desk lighting | * | * | * | ||
| Compressor | * | * | * | ||
| Letting off Air | * | * | * | ||
| Switching maneuver | * | * | * | ||
| Switcher Double A Light | * | ||||
| Sanding | * | ||||
| Low Pitch Horn | * | ||||
| High Pitch Horn | * | ||||
| Switching range + switching light | * | ||||
| Sound of Couplers Engaging | * | ||||
| Sound of uncoupling | * | ||||
| Replenishing diesel fuel | * | ||||
| SIFA warning sound | * | ||||
| Warning announcement | * | ||||
| Opening cab door | * |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
