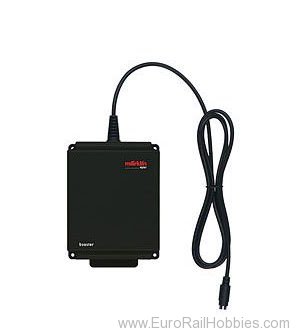

Performance booster for large digitally controlled layouts.
This unit is multiprotocol capable in conjunction with the 60216, 60226, and 60213-60215 Central Station. Connections are made by means of a 7-conductor data bus line directly to the 60213-60215 Central Station. Several Boosters can be used in a system by means of the 60125 Terminal. The Booster automatically registers itself in the 60216, 60226, and 60213-60215 Central Station. The status display is done with an LED on the Booster and graphically in the display window for the Central Station. When using the 60061(230V)/60065 (120V) switched mode power pack there is a maximum power output of 58 VA and a maximum current of 3 amps (with 60216, 60226 or 60215 with the 60101 switched mode power pack there is a maximum current of 5 amps, recommended only for 1 Gauge. Please note that the wire size must be 0.5 square millimeters / 20 gauge or larger!). Dimensions 150 mm x 110 mm x 80 mm / 5-7/8" x 4-5/16" x 3-1/8".
The 60175 Booster is designed for operation only in conjunction with the 60216, 60226, and 60213-60215 Central Station.
