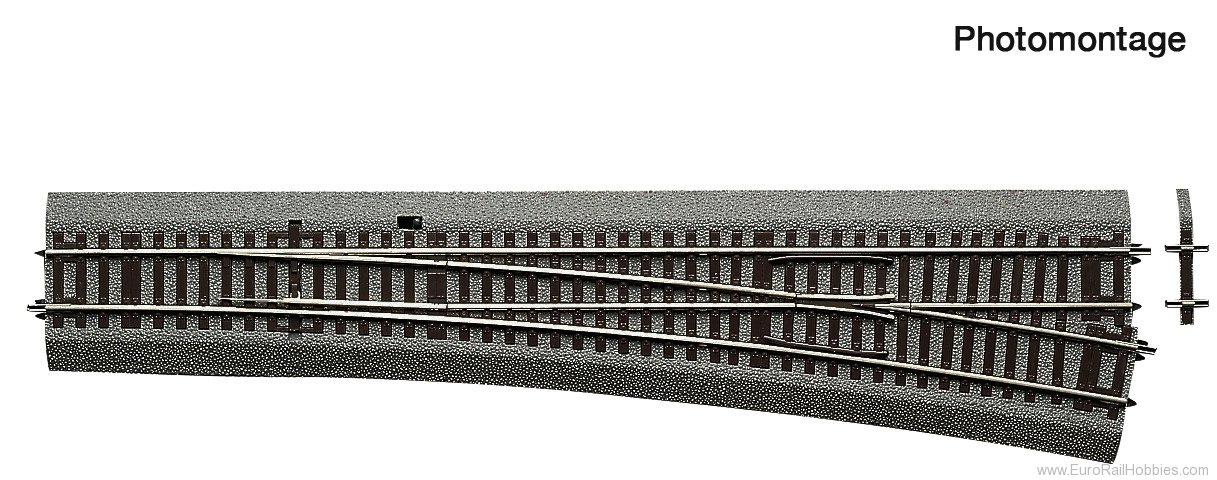

Turnout right hand Wr10 with bedding, manually operated.
Length 345 mm (= G1 + G½), branch angle 10°, branch radius 1946 mm, frog angle 8.1°.
An 5-mm spacer element (D5) is included for diagonal installation.
Suitable electric turnout drive: 42620 or 42624.
■ Frog and wheel guide completely revised
■ Prototypical passing of the frog possible
■ Groove width in the frog area according to NEM
■ Pre-installed polarisation of the turnout frog
| Specifications: |
| Measurements |
| Rail profile height |
|
02. Jan mm |
|
|
|
