ROCO 70440

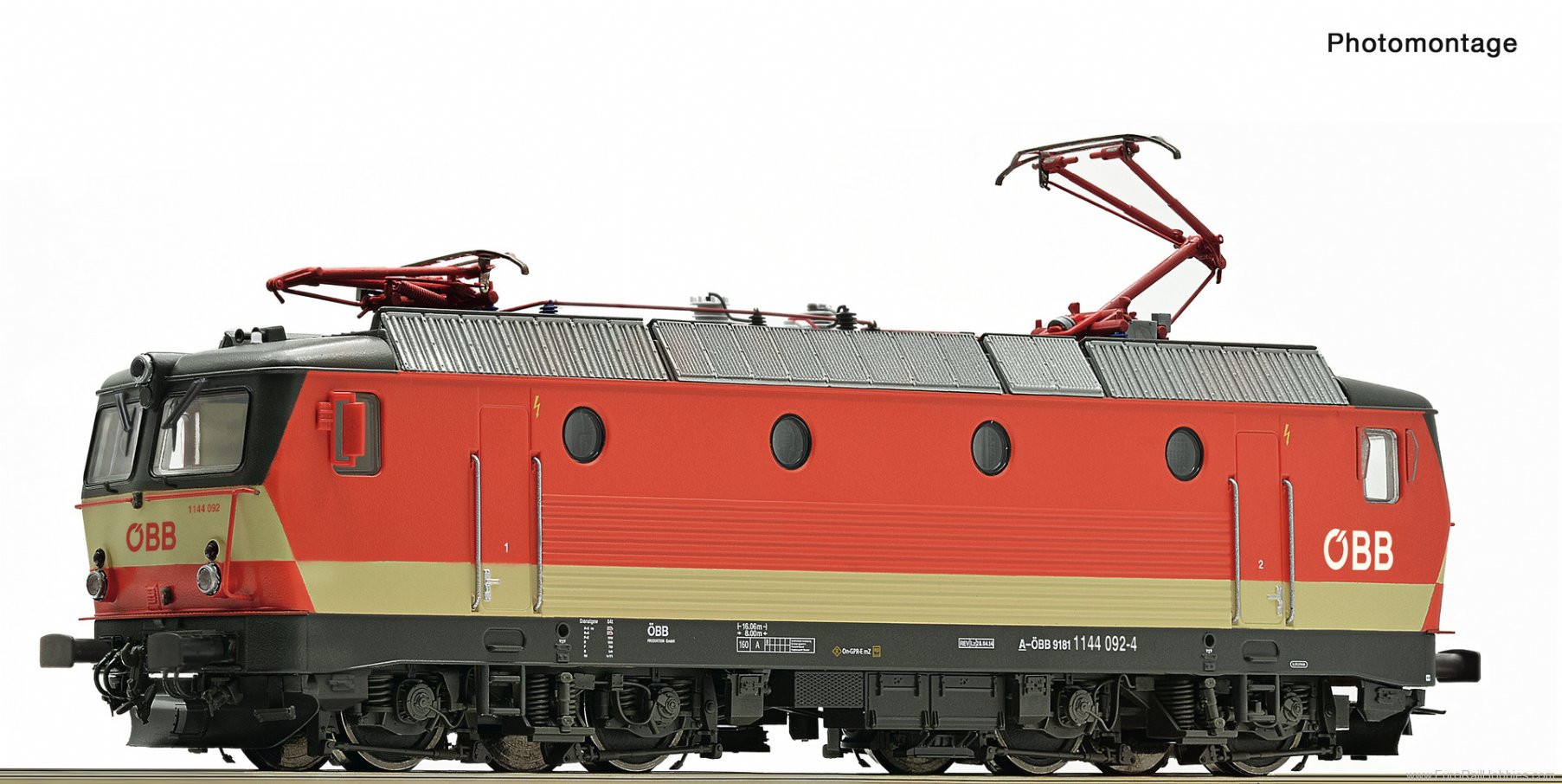

Electric locomotive 1144 092 of the Austrian Federal Railways.

• Current version in chessboard retro design
• With many separately attached plug-in parts, in part in using etching technology
• Use in front of passenger and goods trains within Austria and to Germany
• Switchable high beam and individually switchable headlight or tail light as well as driver's cab lighting in digital mode

From 1976 to 1995, 217 examples of the class 1044 four-axle thyristor locomotives were procured by the ÖBB. The 5,120 kW locomotives, which could run at speeds of up to 160 km/h, shaped the modern image of the ÖBB for many years. From 2002 onwards, most 1044 locomotives were equipped for push-pull operation. This made the engines, now re-designated 1144, even more versatile.

General data

• Coupling: NEM shaft 362 with close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 4
• Number of axles with traction tyres: 1
• Scale: 294
• Epoch: VI
• Article number: 70440
• Railway Company: ÖBB

Electrical

• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
• Control: 2L - Digital
• Interface: Electrical interface for traction units PluX22
• Digital decoder: PluX22
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 185 mm
