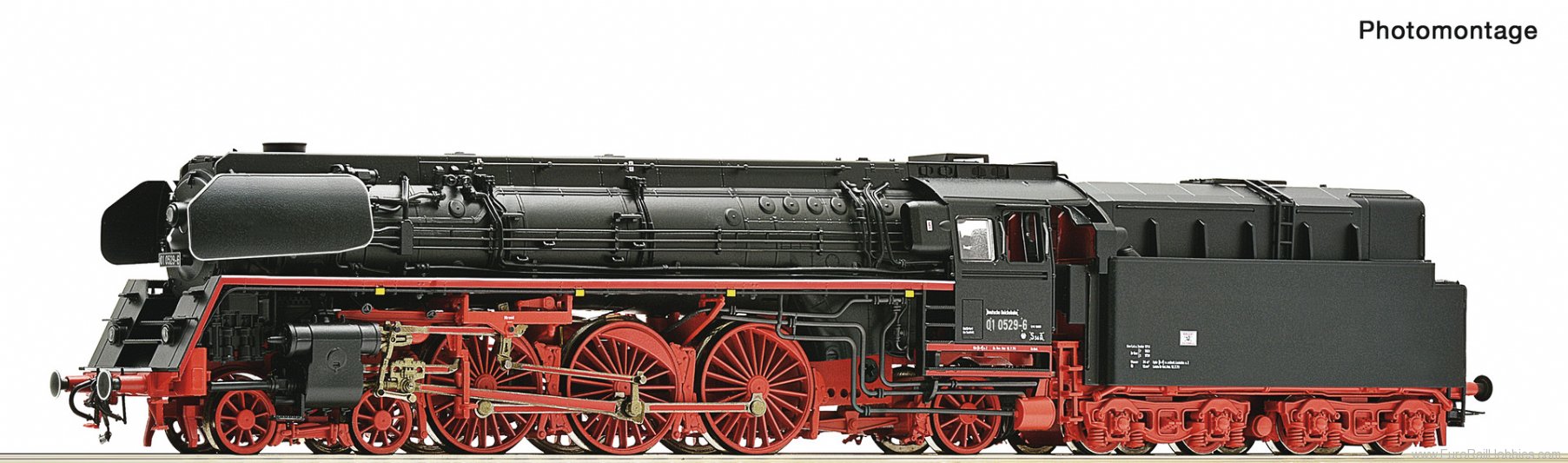

Steam locomotive 01 0529 of the Deutsche Reichsbahn.
Drive on two axles of the tender and via cardan shaft on all three drive axles of the locomotive.
* Variant with oil firing and a pointed smokebox door
* Operation condition 1971; with white decorative lines
* Fine metal wheelsets
* Stationed at Railway Mangement Erfurt, Erfurt depot
The Deutsche Reichsbahn feared that it would have fewer and fewer locomotives for use in its express trains due to the poor condition of some of its class 01s. It was therefore decided to rebuild the 01s, which also meant improving performance and eliminating technical faults, and this was particularly successful with this class. The new welded boiler was fitted with a third safety valve. All the boiler superstructures were clad, the cab was modernised and the Witte smoke deflectors were chamfered at the front.
01 529' was fitted with a combustion chamber boiler, mixing preheater and main oil firing system in 1964. Its last station and place of service was Berlin-Schöneweide. It was taken out of service in July 1983.
General data
| Coupling |
NEM shaft 362 with close coupling mechanism at the tender |
| Minimum radius |
419 mm |
| Flywheel |
yes |
| Number of driven axles |
5 |
| Number of axles with traction tyres |
2 |
| Article number |
7120017 |
| Interior fitting |
Driver's cab |
| Scale |
H0 |
| Epoch |
IV |
| Railway Company |
DR |
Electrical
| Motor |
5-pole motor |
| Head light |
Both sides of the vehicle are equipped with direction dependent triple headlights. |
| Control |
AC |
| Interface |
Electrical interface for traction units according to NEM 652 standards with plug-in fixture |
| Digital decoder |
NEM 652 |
| Sound |
yes |
Measurements
| Length over buffer |
281 mm |
