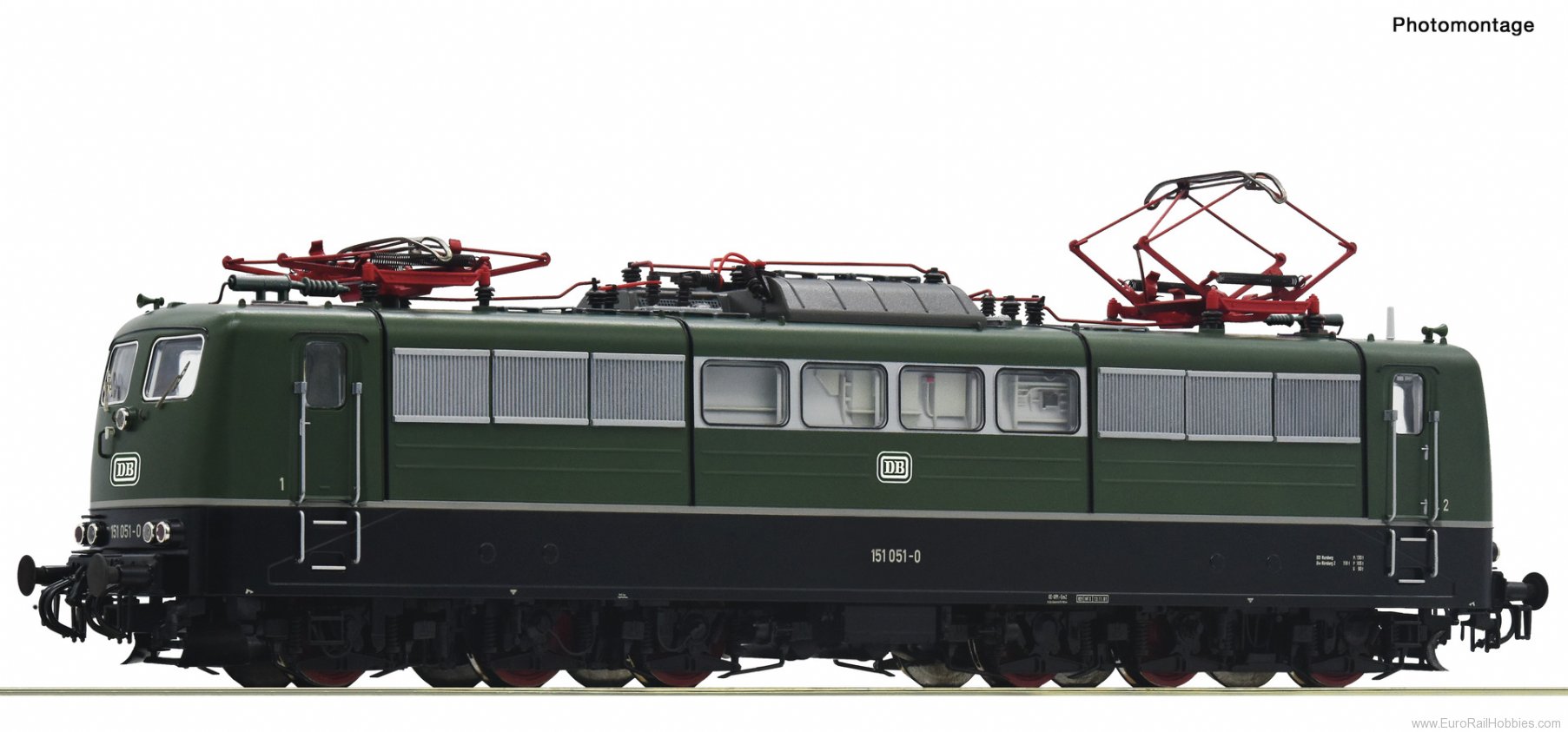

Electric locomotive 151 051 of the German Federal Railway.
* Pantographs drive without cover
* Many attached plug-in parts, in part using etching technology
* Wheels with low wheel flanges
* With switchable headlight or tail light and driver’s cab lighting in digital mode
DB put over 100 of these electric locomotives into service for heavy freight transport starting in 1973. In the development of class 151, some of the proven designs from classes 110, 140, 150 and 103 were used. Three removable bonnets between the driver's cabs facilitate the installation and removal of larger pieces of equipment. With a maximum speed of 120 km/h and an output of 5982 kW, the 151 was one of the DB's most powerful freight locomotives. The prototype was also regularly used in Austria.
General data
| Coupling |
NEM shaft 362 with close coupling mechanism |
| Minimum radius |
358 mm |
| Flywheel |
yes |
| Number of driven axles |
6 |
| Number of axles with traction tyres |
2 |
| Article number |
7510116 |
| Scale |
H0 |
| Epoch |
IV |
| Railway Company |
DB |
Electrical
| Motor |
5-pole motor |
| Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
| LED head light |
yes |
| Additional light function |
yes |
| Interior lighting |
Yes, LED, Digital switchable, Driver's cab lighting |
| Control |
DC Digital |
| Interface |
Electrical interface for traction units PluX22 |
| Digital decoder |
PluX22 |
| Sound |
yes |
Measurements
| Length over buffer |
224 mm |
