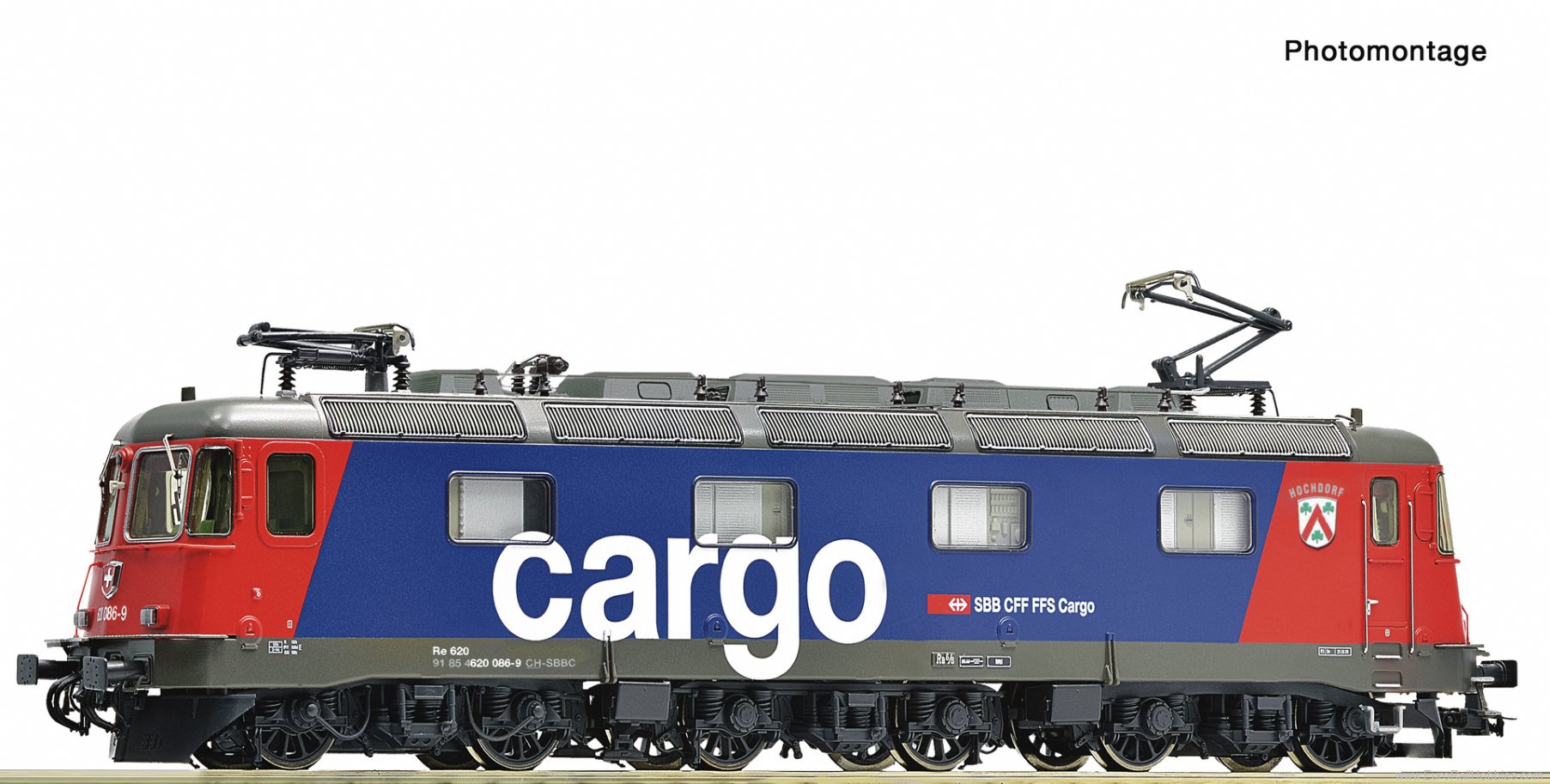

Electric locomotive Re 620 086 of the Swiss Federal Railways.
• Version in blue/red livery with off-centre HOCHDORF coat of arms
• Inset, finely-detailed etched parts such as ventilation grilles and windscreen wipers
• Square lamps
• Finely-spoked wheels and current collectors
• In digital mode with light functions according to the Swiss prototype
The Re 6/6s are six-axle electric locomotives of the Swiss Federal Railways which were purchased as a replacement for the Ae 6/6 for heavy-duty service on the Gotthard. With an hourly output of 7,850 kW and a top speed of 140 km/h, the Re 6/6, which was first put into service in 1972, is still considered one of the strongest locomotives in Switzerland today. Later designated the Re 620, they were equipped with driver's cab air conditioning from 2005.
General data
- Coupling: NEM shaft 362 without close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 2
- Article number: 7520033
- Scale: H0
- Epoch: VI
- Railway Company: SBB
Electrical
- Motor: 5-pole motor
- Head light: Light changeover true to the Swiss original.
- LED head light: yes
- Control: AC
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Sound: yes
- Buffer capacitor: yes
Measurements
- Length over buffer: 222 mm
