ROCO 7720001

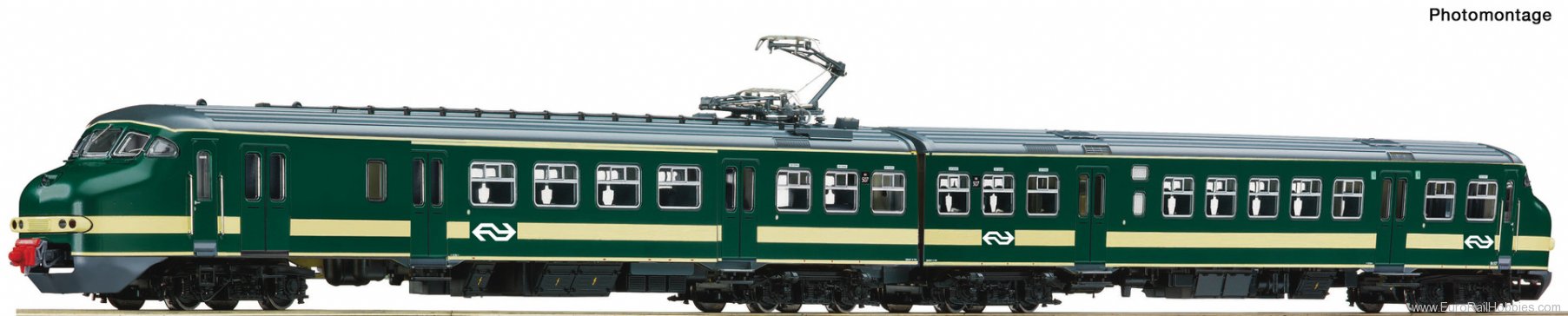

Electric multiple unit Plan V of the Dutch State Railways.

• For the first time with PluX22 interface and PluX22 sound decoder in green paintwork
• Delicately crafted pantographs in line with the prototype
• Finely detailed model with many separately attached plug-in parts
• Model equipped with a sound decoder and a function decoder

The two-part Dutch electric multiple unit Plan V - better known in the Netherlands as the Mat '64 or by its nickname, Apekop (monkey head) - became one of the standard regional transport trains in the Dutch State Railways from the middle of the 1960s onwards. With a total of 246 models, it was the most commonly built multiple unit in the NS at the time.
The Plan V1 and V2 were delivered in green livery with sand-yellow trim strips. The Plan V of the third series had already been painted yellow at the factory in 1968. The multiple units delivered earlier were then also repainted between 1969 and 1973. Until they were taken out of service, these multiple units were used on virtually all electrified railway lines in the Netherlands.

General data

• Coupling: In-house produced coupling
• Minimum radius: 419 mm
• Flywheel: yes
• Number of driven axles: 2
• Number of axles with traction tyres: 1
• Scale: 294
• Epoch: III-IV
• Article number: 7720001
• Interior fitting: Model with interior furnishing
• Railway Company: NS

Electrical

• Motor: 5-pole motor
• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Interior lighting: Yes, LED, Digital switchable
• Control: AC
• Interface: Electrical interface for traction units PluX16
• Digital decoder: PluX22, Function decoder
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 599 mm
