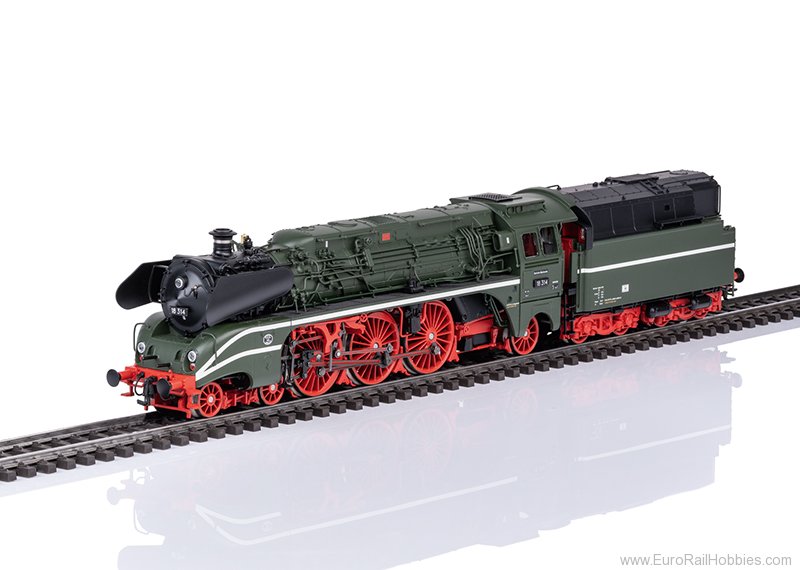

Prototype: German State Railroad of the GDR (DR/GDR) express steam locomotive, road number 18 314, with oil firing and a type 22T34 oil tender. Conversion version as the experimental locomotive of the VES-M Halle (Saale). Version with a rebuilt boiler and partial streamlining, based on the steam locomotive, road number 18 314 (former Baden class IV h). Witte smoke deflectors and inductive magnet on one side. The locomotive looks as it did around 1968.
Highlights
Model: The locomotive has a digital decoder and extensive sound functions. It also controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. There is a factory-installed smoke unit, speed-dependent dynamic smoke exhaust. The triple headlights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. There are also two digitally controlled red lamps at the front of the locomotive. The cab lighting and the running gear lights can be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. There is a buffer capacitor. There is a close coupling with a guide mechanism between the locomotive and the tender. There is a close coupler with a guide mechanism and an NEM pocket on the tender. The minimum radius for operation is 360 mm / 14-3/16. Streamlining without a wheel cutout for installation beneath the cab is included for large radius curves or a display case. Piston rod protective sleeves and brake hoses are also included.
Length over the buffers 27.2 cm / 10-11/16.
Digital Functions
| DCC | SX2 | SX | MFX | |
|---|---|---|---|---|
| Headlight(s) | * | * | ||
| Smoke generator | * | * | ||
| Steam locomotive op. sounds | * | * | ||
| Locomotive whistle | * | * | ||
| Direct control | * | * | ||
| Sound of squealing brakes off | * | * | ||
| Engineers cab lighting | * | * | ||
| Light Function1 | * | * | ||
| Running gear lights | * | * | ||
| Air Pump | * | * | ||
| Letting off Steam | * | * | ||
| Water Pump | * | * | ||
| Injectors | * | * | ||
| Operating Sounds 1 | * | * | ||
| Whistle for switching maneuver | * | * | ||
| Replenishing fuel | * | * | ||
| Replenishing water | * | * | ||
| Replenishing sand | * | * | ||
| Switcher Double A Light | * | * | ||
| Switching range + switching light | * | * | ||
| Generator Sounds | * | * | ||
| Operating Sounds 2 | * | * | ||
| Rail Joints | * | * | ||
| Safety Valve | * | * | ||
| Sound of Couplers Engaging | * | * |
