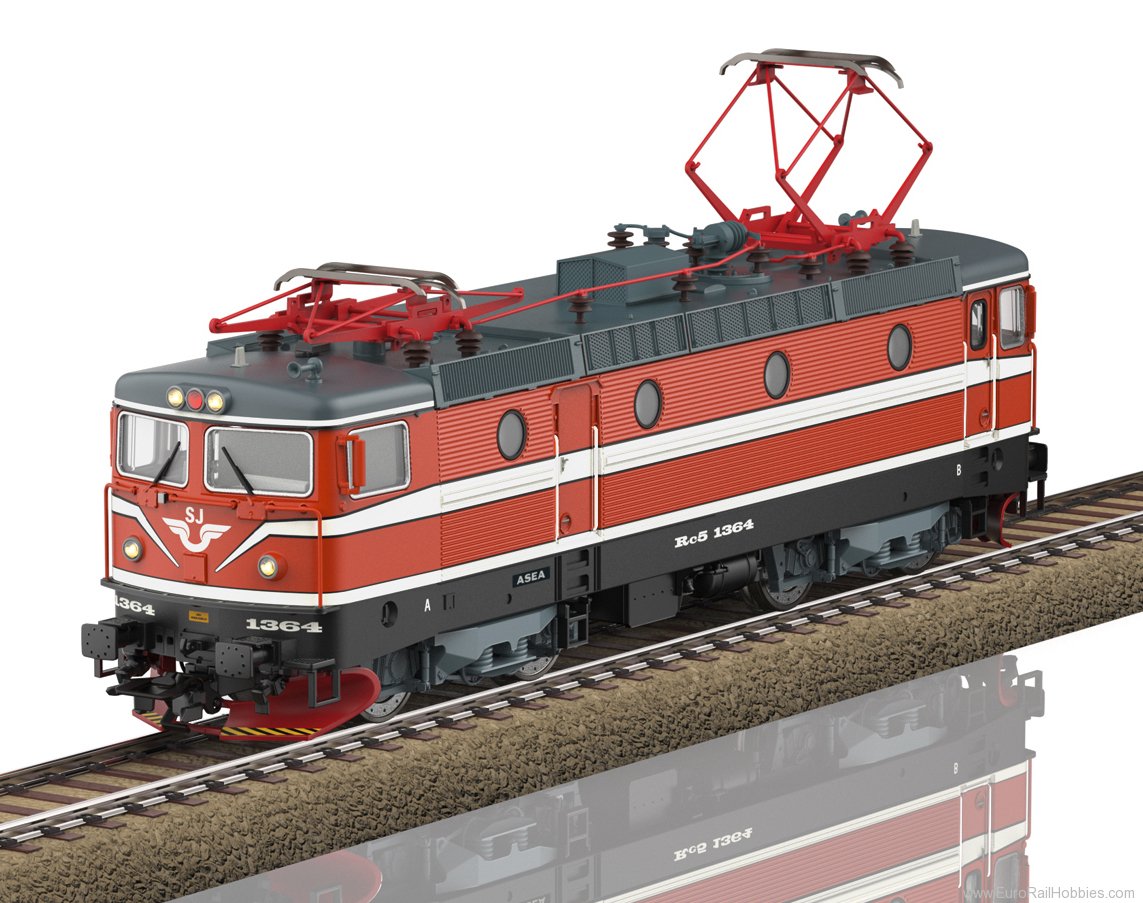

Prototype: Swedish State Railways (SJ) class Rc 5 electric locomotive. Version in an orange basic paint scheme with double arm pantographs. The locomotive looks as it did starting in 1990.
Highlights
Model: The locomotive has a digital decoder and extensive sound functions. The locomotive has controlled high-efficiency propulsion. 4 axles powered. Traction tires. The four headlights and a single red marker light change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The cab lighting can be controlled digitally. When the headlights are off at both ends, then a switching light is on at both ends. Numerous various light signals can be controlled digitally. Maintenance-free warm white and red LEDs are used for the lighting. There are separately applied plastic and metal grab irons. The buffer height adheres to the NEM. Rearview mirrors are mounted on the locomotive. Brake lines, imitation prototype couplers, and a closed rail clearance device are included.
Length over the buffers 17.7 cm / 7".
| DCC | SX2 | SX | MFX | |
|---|---|---|---|---|
| Headlight(s) | * | * | ||
| Light Function | * | * | ||
| Electric locomotive op. sounds | * | * | ||
| Horn | * | * | ||
| Direct control | * | * | ||
| Engineer's cab lighting | * | * | ||
| Headlight(s): Cab2 End | * | * | ||
| Horn | * | * | ||
| Headlight(s): Cab1 End | * | * | ||
| Sound of squealing brakes off | * | * | ||
| Light Function1 | * | * | ||
| Conductor's Whistle | * | * | ||
| Light Function 2 | * | * | ||
| Blower motors | * | * | ||
| Compressor | * | * | ||
| Letting off Air | * | * | ||
| Sanding | * | * | ||
| Light Function 3 | * | * | ||
| Special light function | * | * | ||
| Blower motors | * | * | ||
| Operating sounds | * | * | ||
| Windshield wiper sounds | * | * | ||
| SIFA warning sound | * | * | ||
| Opening cab door | * | * | ||
| Switching maneuver | * | * | ||
| Pantograph Sounds | * | * | ||
| Switching range + switching light | * | * | ||
| Station Announcements | * | * | ||
| Grade crossing | * | * | ||
| Coupler sounds | * | * |
