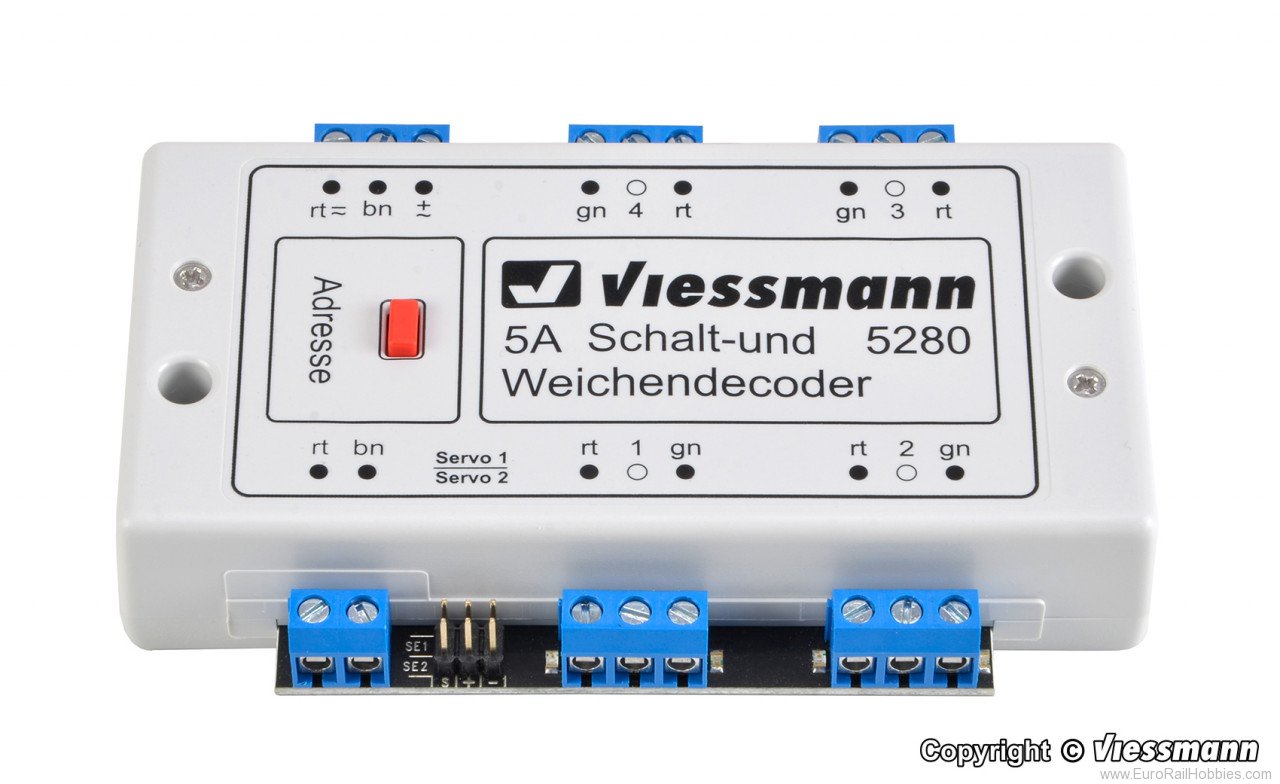

The decoder is a multi protocol decoder for DCC and Marklin Motorola. Suitable as a point decoder for 4 turnouts with double coils and controls 2 additional servos. Equipped with 4 output pairs, which can also be configurated with additional special functions. So lighting effects, blinking for road works or advertising are possible. The decoder recognizes settings of the turnouts with end position and informs postion by RailCom. Features: 4 pairs of turnout outputs (double coils). Switches positive voltage, outputs can also be configured as single outputs, power supply can be provided from the digital signal or from an external supply to reduce load. Many functions for the outputs: Impulse, constant or flashing outputs, adjustable output power, max. current 5 A each output, max. 5 A total. Max. current adjustable. LEDs indicate the states of the outputs. Programmable via the programming track and POM. Address can be also set with the push of a button. Supports RailCom. The speeds and end positions of the servos can be configured, power supply for both servos, total 300 mA constant, 450 mA peak. Screw terminals.
