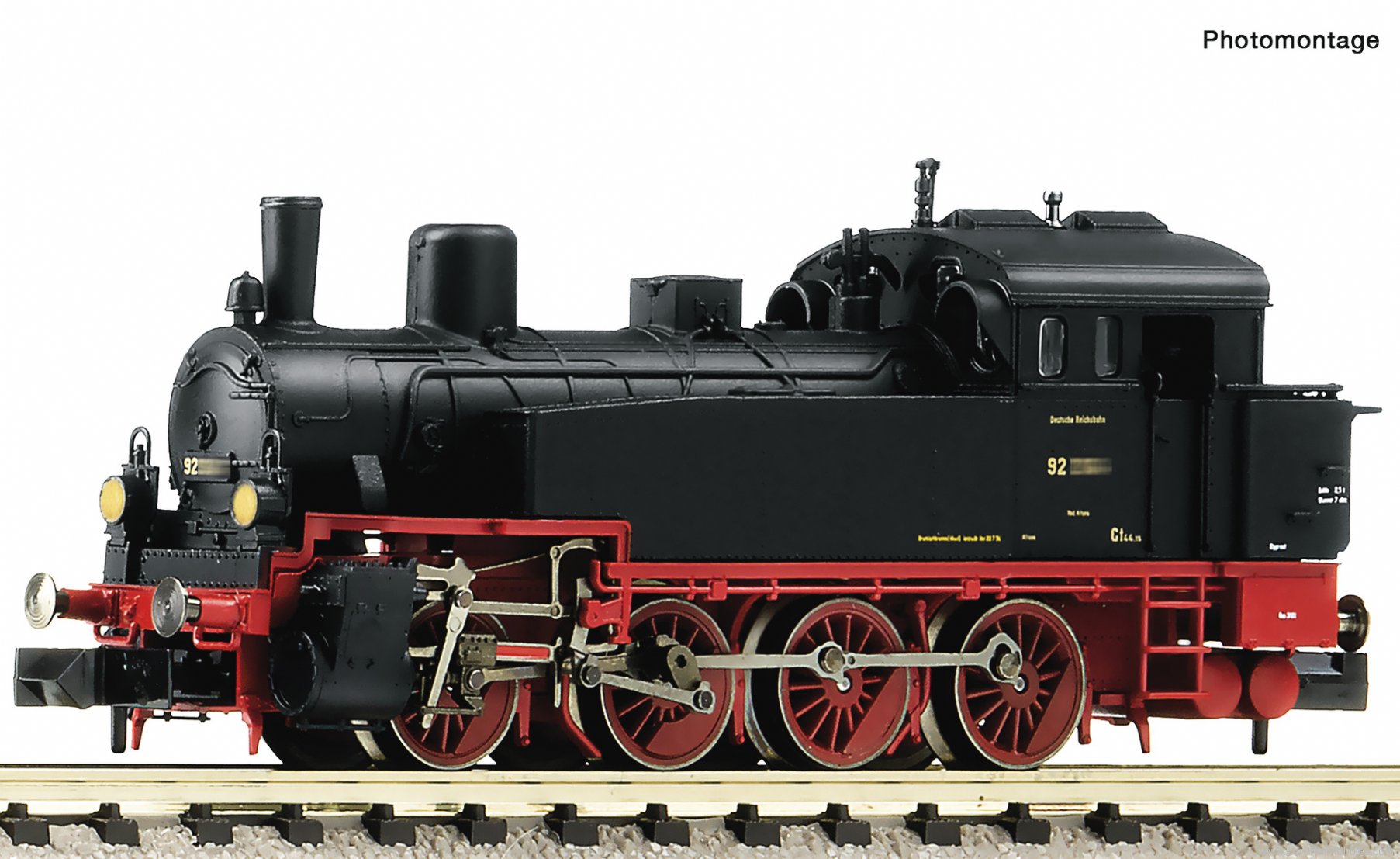

Steam locomotive class 92.5-10 of the German State Railway Company (DRG).
Update !
* For the first time with authentic sound functions
* True-to-original, unobstructed view between boiler and chassis
* Maintenance-free bell armature motor
In the years between 1910 and 1916, a total of 512 T 13s were built for the Prussian State Railways by various manufacturers. Due to the numerous losses after World War I, the DRG ordered a further 72 locomotives, and the Saarbahnen ordered 12. The Imperial Railways in Alsace-Lorraine also had 60 T 13s in their fleet. The Grand Ducal Oldenburg State Railways owned ten locomotives of this type. The T 13 was added to the numbering system of the Deutsche Reichsbahn in 1925 as Class 92.5-10 with the running numbers 92 501-913 and 92 1001-1072.
General data
Coupling |
NEM shaft 355 with close coupling mechanism |
Minimum radius |
192 mm |
Flywheel |
yes |
Number of driven axles |
4 |
Number of axles with traction tyres |
1 |
Scale |
N |
Epoch |
II |
Railway Company |
DRG |
Electrical
Motor |
Coreless |
Head light |
Direction dependent dual headlights |
LED head light |
yes |
Sound |
yes |
Control |
DC Digital |
Interface |
Electrical interface for traction units Next18 |
Digital decoder |
Next18 |
Measurements
Length over buffer |
69 mm |
