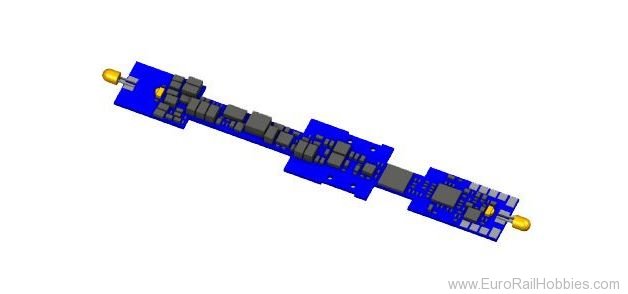

The LokSound 5 micro DCC Direct Kato USA has been specially developed for installation in track N vehicles of the Kato USA brand: Most diesel locomotives of this manufacturer are installed in the American model of these decoders instead of the analog board installed as standard. Finally, these models can also be easily retrofitted with a LokSound decoder.
The LokSound 5 micro DCC Direct Kato USA with its dimensions of 60.0mm x 10.1mm is a pure DCC decoder and comes without a loudspeaker.
The LokSound 5 micro DCC Direct Kato USA is a "pure-bred" DCC decoder. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus, the decoders log in fully to a suitable digital center.It masters all DCC programming modes and thanks to RailCom the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.
The LokSound 5 micro DCC Direct Kato USA Decoder detects the Marklin brake distances as well as ZIMO HLU / ZACK commands or the Lenz ABC system. Braking with DCC brake blocks or dc voltage is also possible. In addition, it also stops with a Selectrix brake diode. An AUTOMATIC ABC commuter train allows automatic commuting between two stations.
The LokSound 5 micro DCC Direct Kato USA can be used on analog DC webs.The decoder switches "on-the-fly" fully automatically between operating modes. Most of the time, nothing needs to be adjusted.
The LokSound 5 micro DCC Direct Kato USA Decoder can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on its system. There is virtually no difference to the original audible anymore. A Class-D audio output with up to 3W output power controls the speakers, which can have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity.
All individual noises can be adjusted individually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks.
Despite its compact dimensions, the LokSound 5 micro DCC Direct Kato USA is equipped with an enormen number of function outputs. Two directly soldered SMD LEDs are designed for front and rear front and rear head lighting. For older models, two wired LEDs can alternatively be soldered and switched separately. Three further reinforced function outputs are also available. All important lighting functions are available. The brightness of each output can be set separately.
The motor control of the LokSound 5 micro DCC Direct Kato USA has a variable PWM clock frequency from 10kHz to 50kHz, which ensures super-quiet operation, especially for bell anchor motors - the typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured against the motor. The LokSound 5 micro DCC Direct Kato USA decoder delivers up to 0.9A motor power.
