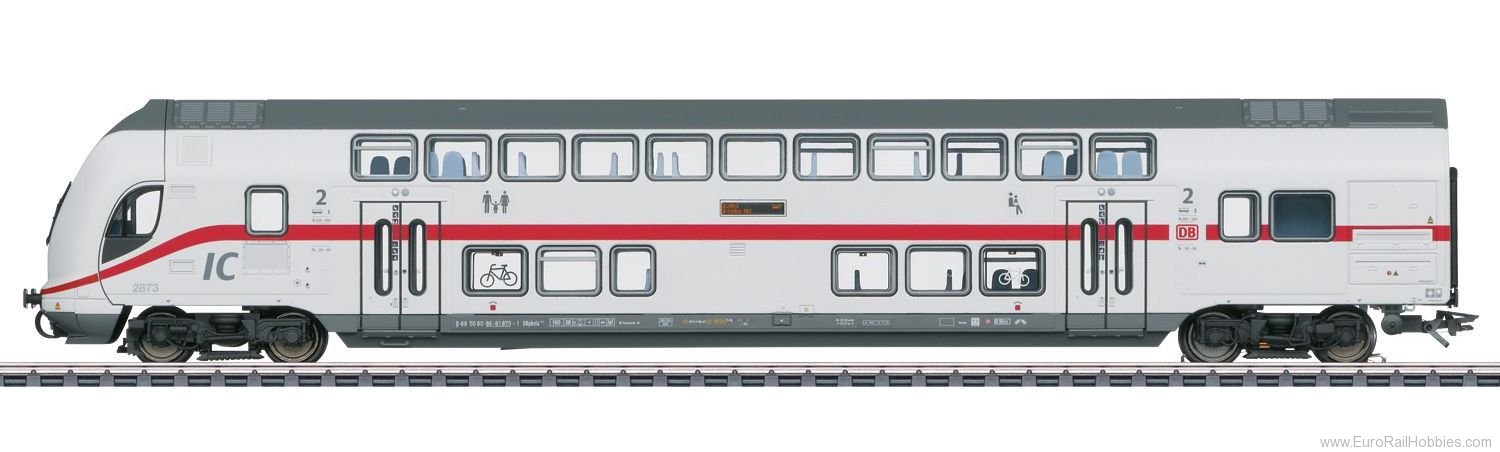

Prototype: German Railroad, Inc. (DB AG) type DBpbzfa 668.2 IC2 bi-level cab control car, 2nd class, for long-distance service. Light gray long-distance service paint scheme with traffic red decorative striping, in the current IC design. Train route: IC 2045 from Cologne to Dresden Main Station. Car position number 1. The car looks as it did in 2020.
Highlights
The minimum radius for operation is 360 mm / 14-3/16". There is a low entry between the trucks. The car has factory-installed LED interior lighting on both levels and a current-conducting, operating close coupler on the end of the car without a cab. The car has a lighted train destination display on the end above the cab and it can be turned off separately in digital operation. The car has lighted train destination displays on the sides. The interior lighting and the train destination displays on the sides can be turned on and off digitally in conjunction with the other bi-level intermediate cars with the decoder in the cab control car. A fixed, defined sequence of cars is assigned to do this. Triple headlights and dual red marker lights change over with the direction of travel and can be controlled separately in digital operation. Long-distance headlights can also be controlled separately in digital operation. The light changeover, interior lighting, and the train destination displays on the sides will work in conventional operation. A standard coupler can be used on the cab end of the cab control car by removing a piece of skirting, thus allowing a locomotive to be coupled to it. There are red transparent marker light inserts at the end of the car without a cab. The car has prototypical Görlitz design trucks.
Length over the buffers 29.2 cm / 11-1/2".
Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
---|---|---|---|---|---|
Headlight(s) | * | * | * | * | * |
Long distance headlights | * | * | * | * | * |
Train destination sign | * | * | * | * | * |
Interior lights | * | * | * | * | * |
Engineer's cab lighting | * | * | * | * | * |
