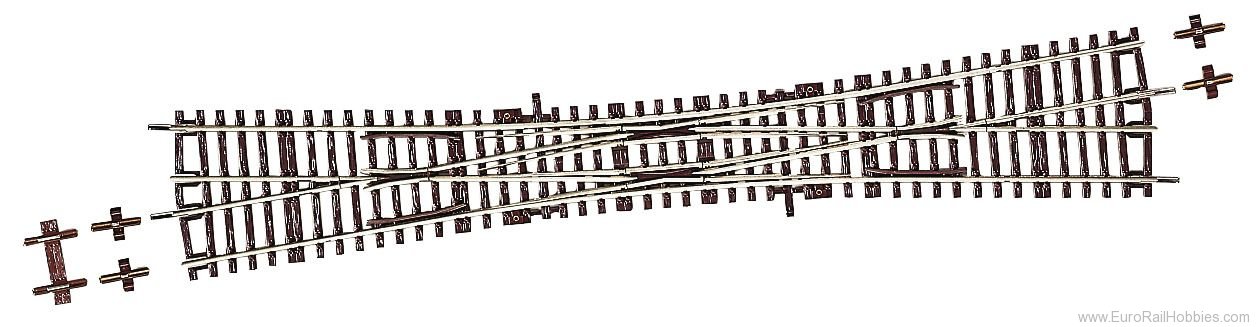

Double slip turnout DKW10, without turnout mechanisms. Standard design with internal switch rails.
Length 345 mm (= G1 + Ga), crossing angle 10°, branch radius 959 mm.
For installation crossing from left or right two 2.5 mm spacers (D2) are included. An 8 mm spacer element (D8) is included for combining with diagonally installed 10° turnouts.
Suitable turnout mechanisms (2 pieces are required):
40295 (electric turnout mechanism left)
or 40297 (manual turnout mechanism left)
or 10030 (below baseboard mechanism).
Please note the operating instructions!
