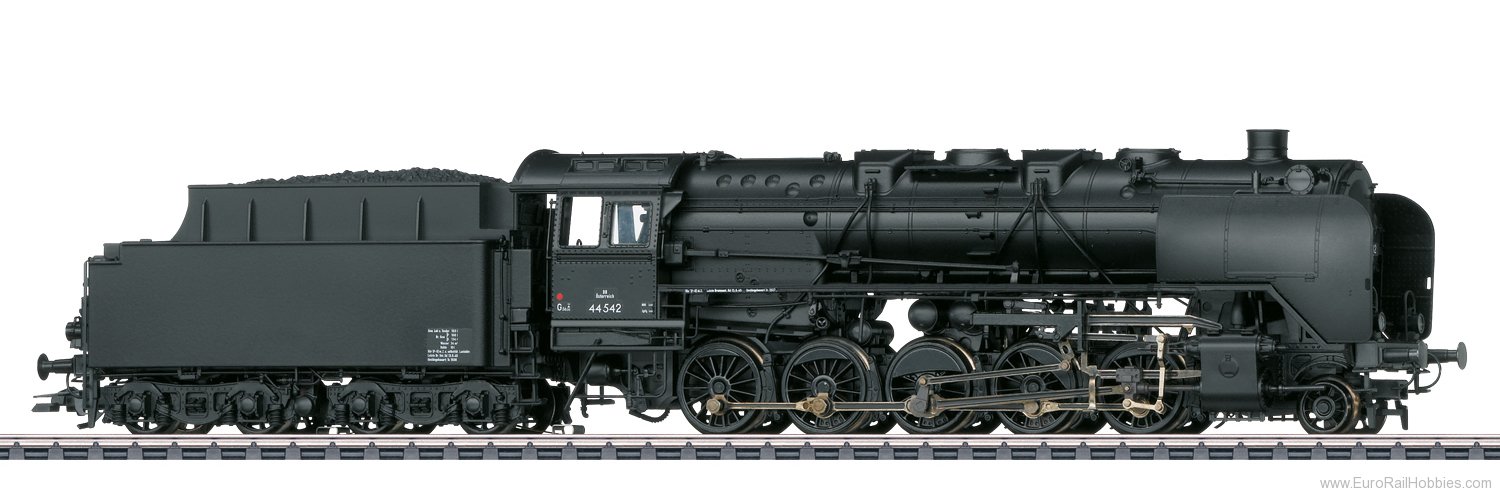

Prototype: Austrian Federal Railways (BBÖ) class 44 heavy steam freight locomotive, with a type 2´2´T34 standard design coal tender. Black basic paint scheme. Standard design Wagner smoke deflectors, German State Railroad lamps, pilot truck wheel set with spoked wheels, with smoke box central locking, and without inductive magnets. Road number 44 542. The locomotive looks as it did around 1949.
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 5 axles powered. Traction tires. The locomotive and the coal tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. The dual headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lighting, firebox flickering, and the flickering in the ash pan can also be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with an NEM pocket and a guide mechanism on the tender and on the front of the locomotive. The minimum radius for operation is 360 mm / 14-3/16". Protective sleeves for the piston rods, brake hoses, and imitation couplers are included as detail parts.
Length over the buffers 26 cm / 10-1/4".
|Control Unit||Mobile Station||Mobile Station 2||Central Station 1/2||Central Station 3/2*
Mobile Station 2**
|Smoke generator contact||*||*||*||*||*|
|Steam locomotive op. sounds||*||*||*||*||*|
|Sound of squealing brakes off||*||*||*||*|
|Engineer's cab lighting||*||*||*||*|
|Whistle for switching maneuver||*||*||*||*|
|Flickering Light in Fire Box||*||*||*||*|
|Letting off Steam||*||*||*|
|Sound of coal being shoveled||*||*||*|
|"Switcher Double ""A"" Light"||*|
|Special light function||*|
|Sound of Couplers Engaging||*|
